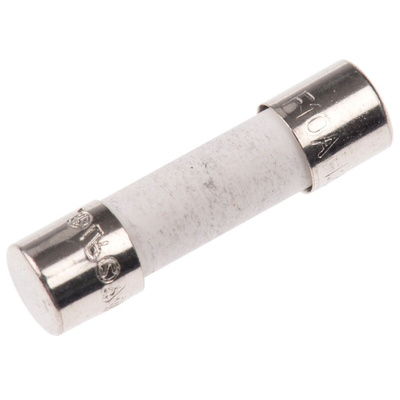

S501-10-R, Eaton 10A F Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Series Cartridge Fuse, Ceramic, Fuse Speed F - S501-10-R

This Eaton Ceramic Cartridge Fuse is designed for high performance in automation, electronics, electrical, and mechanical industries. With a current rating of 10 A and a voltage rating of 250 V ac, this fast-acting fuse ensures reliable protection for your equipment and machinery. The high rupture capacity and compact 5x20 mm size make it ideal for various applications where safety and efficiency are paramount.

Features & Benefits

• Fast-acting ceramic tube fuse for quick and reliable protection
• High rupture capacity of 1500A for enhanced safety
• Compact 5x20 mm size for easy installation in tight spaces
• Current rating of 10A for versatile use in different applications
• Voltage rating of 250V AC to handle higher power demands

Applications

• Suitable for use in automation systems to protect sensitive components
• Ideal for use in electrical panels to prevent overloads and short circuits
• Perfect for electronic devices to ensure safe operation
• Used in machinery and equipment to protect motors and control circuits
• Commonly found in industrial settings where reliable protection is essential

Can it handle high voltage applications?

Yes, the Eaton ceramic cartridge fuse is designed to handle voltage ratings up to 250 V.

Will it provide reliable protection for my electronic devices?

Yes, the fuse has a high rupture capacity of 1500 A to ensure the safety of your equipment.

Is it easy to install in tight spaces?

Yes, the compact 5x20 mm size makes it easy to install the fuse in various applications.

Can it be used in automation systems?

Yes, the fast-acting fuse is ideal for use in automation systems to protect critical components.

Note

Eaton formerly known as Bussmann

Very high breaking capacity
Good mechanical/vibration characteristics

Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
