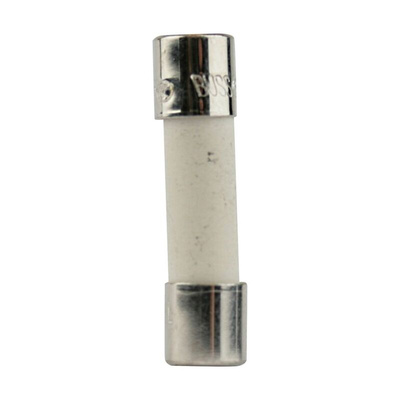

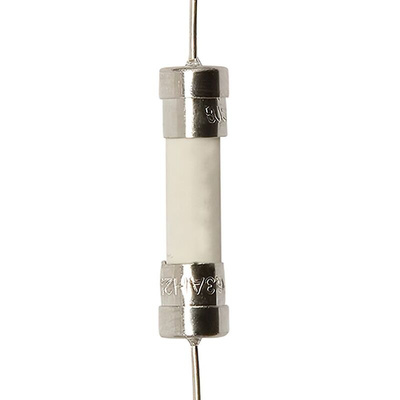

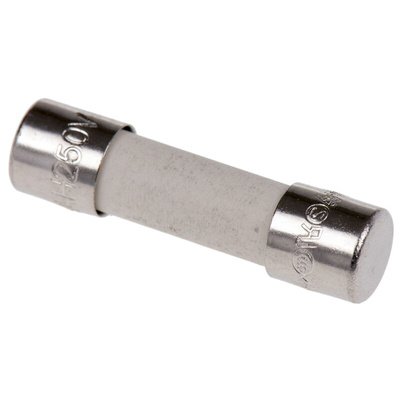

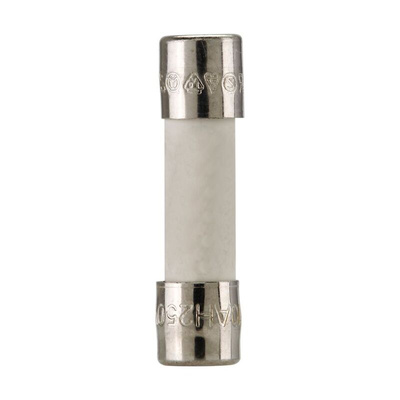

S501-4-R, Eaton 4A F Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Quick Acting (F) HBC Cartridge Fuses - Ceramic 5x20mm

This range of cylindrical ceramic fuses from Eaton Bussmann is the perfect solution for short-circuit protection of semiconductors such as thyristors, diodes and triacs. Available in a range of current ratings with varying resistance values, these cartridge fuses are reliable and suitable for a variety of applications. Note that for fuses with a current rating greater than 6.3A, using open type fuse holders is recommended to reduce the risk of nuisance tripping at or near full rated current.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses such as a glass fuse. This means ceramic fuses can be used in circuits that have a higher current and are perfect for protecting against overheating.

What size is it?

5 mm x 20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5 x 20 mm fuse holder.

What Speed is it?

This particular fuse is type ''F'' speed-rated which means a fast-acting fuse. These are designed to protect less sensitive components and are also used to protect the cabling from melting or catching fire when an overload appear. Every fast-acting fuse will have the exact speed stated which will be relevant to different overloads.

What voltage is it?

These cartridge fuses are available with 40 mA to 10 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What is an over-current?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular cartridge fuse is HBC (High Breaking Capacity).

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

Eaton Cartridge Fuse, High Rupture Capacity, 250V AC Voltage Rating - S501-4-R

Cut the risk of equipment damage caused by excess current using this cartridge fuse from Eaton. When it senses a surge in the input, it breaks the attached circuit to help prevent a hazard. Its robust ceramic body is durable and stays cool, so you can rest assured this unit won't overheat in demanding conditions. The body is also filled with sand, meaning it won't add fuel to the fire in case an electrical incident sparks up flames. Use this cartridge fuse to protect semiconductors in your industrial machinery.

Features & Benefits

• Low current rating of 4A for an energy-efficient operation
• Widely compatible dimensions of 5 (W) x 20mm (L) to fit comfortably into a standard panel
• High-rupture capacity for durability in harsh conditions

What's the breaking capacity of this fuse?

The component has a breaking capacity of 1500A so it can stand up to high-current intakes in your circuit.

How fast is this cartridge fuse?

An F speed rating indicates this is a fast-acting option that swiftly responds to spikes in the power supply, ensuring your circuit's in safe hands.

Note

Eaton formerly known as Bussmann

Approvals

UL, SEMKO, VDE

Very high breaking capacity
Good mechanical/vibration characteristics

Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
