S505-10-R, Eaton 10A T Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Series Anti Surge (T) HBC – Ceramic Bodied, 5 x 20 mm

Eaton Bussmann anti-surge ceramic cartridge fuses are designed to prevent damage to electrical equipment. These fuses allow an electric current to flow through until the current goes over the fuse's rating then it will blow and stop the flow of electricity. This range of ceramic cartridge fuses is 5 x 20mm with a T speed rating.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 mm fuse holder.

What Speed is it?

This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What voltage is it?

These cartridge fuses are available with 0.5 to 12 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

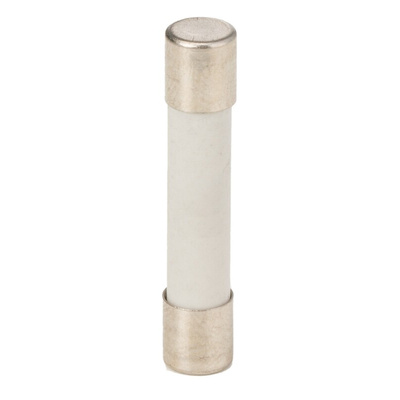

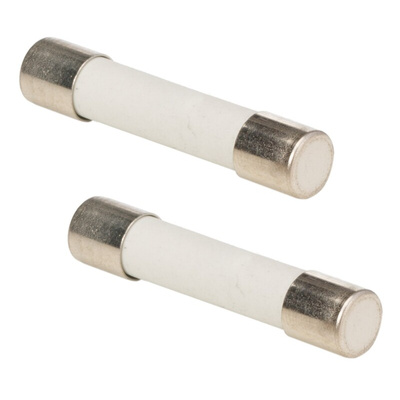

Eaton Ceramic Cartridge Fuse, 10A, T Speed S505-10-R

Protect your electrical equipment with this Eaton cartridge fuse. This T-speed device tolerates some spikes in current but breaks if there's a sustained overload above its 10A rating. Any equipment or components downstream of this fuse are therefore protected from the dangerous effects of overheating and possible fire. This ceramic body fuse is suitable for 250V AC systems and high inrush current caused by motors starting. You can use it in primary circuit protection for appliances like printers, LED (light-emitting diode) televisions and domestic white goods.

• Ceramic body designed for higher current loads to protect light industrial equipment such as portable air-conditioning units
• Standard cartridge size (5mm diameter x 20mm length) compatible with common fuse holders
• Free from halogen and lead, preventing harm to health and the environment

What's a slow-acting fuse?

Slow-acting fuses feature a built-in time delay – referred to as T – which allows temporary inrush currents to pass with the fuse triggering. The fuse will still open on sustained overloads and short circuits, however. These fuses are designed to accommodate short current surges caused by things like motor start-ups.

Note

Eaton formerly known as Bussmann

VDE 40014091

Datasheet - Eaton Bussmann S505

Transition to Bussmann Series
