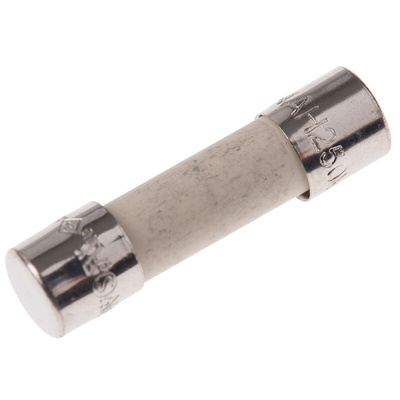

S505-4-R, Eaton 4A T Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Series Anti Surge (T) HBC – Ceramic Bodied, 5 x 20 mm

Eaton Bussmann anti-surge ceramic cartridge fuses are designed to prevent damage to electrical equipment. These fuses allow an electric current to flow through until the current goes over the fuse's rating then it will blow and stop the flow of electricity. This range of ceramic cartridge fuses is 5 x 20mm with a T speed rating.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 mm fuse holder.

What Speed is it?

This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What voltage is it?

These cartridge fuses are available with 0.5 to 12 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

Eaton Ceramic Cartridge Anti-Surge Fuse, 4A, T Speed S505-4-R

Protect your electrical equipment and circuitry from the hazardous effects of current overloads with this anti-surge fuse from Eaton . Rated T to indicate that it's slow-acting, this device has a time-delay function, which means it can carry an overload several times the typical load for a short amount of time without blowing.
The fuse will isolate and keep electrical components safe when a circuit sustains prolonged overcurrent, but it won't blow with shorter surges caused by motors pulling excessive current on start-up, for example. This makes it ideal for safeguarding commercial or industrial electrical subsystems.

Features & Benefits

• Ceramic body material prevents risk of melting, arcing or burning
• Dimensions of 5 (diameter) x 20mm (length) for versatile use
• Compatible with universally used 250V AC supply voltage

How do cartridge fuses like this one work?

Current is the amount of amperage (amps) flowing through a wire or circuit, and every wire or circuit has a specific maximum electrical current rating. When this is exceeded, the wire inside the fuse melts and stops the current, preventing damage to connected equipment.

Note

Eaton formerly known as Bussmann

Approvals

UL, VDE, SEMKO, IMQ, BSI

VDE 40014091

Datasheet - Eaton Bussmann S505

Transition to Bussmann Series
