S506-4-R, Eaton 4A T Glass Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Anti Surge (T) LBC Cartridge Fuses - Glass Bodied 5x20 mm

This range of glass cartridge fuses from Eaton Bussmann is ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.

Why choose a glass cartridge fuse?

Glass and ceramic fuses have similar properties. However, you may choose a glass cartridge fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown.

What size is it?

5 mm x 20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5 x 20 mm fuse holder.

What voltage is it?

These cartridge fuses are available with 40mA to 15 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What Speed is it?

This particular cartridge fuse is “T” speed rated which means it is a slow-acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular cartridge fuse is LBC (Low Breaking Capacity).

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

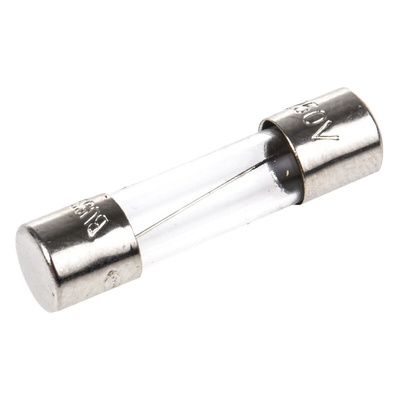

Eaton Glass Cartridge Fuse, 4A, T Speed S506-4-R

Want to avoid damage caused by current overloads? This effective LBC (low breaking capacity) fuse from Eaton protects your electrical equipment and circuitry from the hazardous effects of overheating, such as fire. The fuse blows when the current exceeds its capacity, breaking the circuit so that you can rectify the fault before replacing the fuse. As it's rated T-speed, this fuse is slow-acting and tolerates short periods of inrush current – typically caused by motor start-ups – while still protecting against sustained overcurrent.

• Glass body lets you see quickly that the fuse has blown, to save time diagnosing a fault
• Standard dimensions (5mm diameter x 25mm length) for use with the most common fuse holder sizes

How do cartridge fuses work?

Cartridge fuses contain a piece of wire joining the two conductive endcaps. This wire melts when too much current flows through the circuit. When the wire melts, it breaks the circuit, preventing any potential damage to equipment. This is often described as the fuse 'blowing out'.

Note

Eaton formerly known as Bussmann

Approvals

UL, VDE, SEMKO, IMQ, MITI

Datasheet - Eaton S506 Series

Transition to Bussmann Series
