Eaton 6.3A F Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Cartridge Fuse, 14mΩ Resistance, 250V AC Voltage Rating - S501 Series - S501-6.3-R

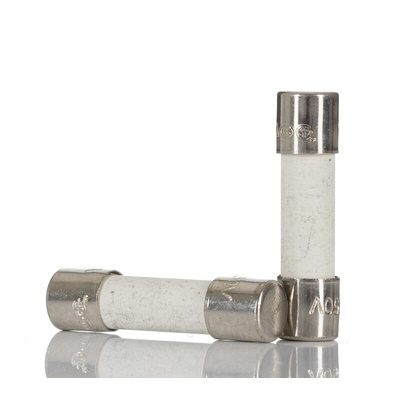

Do you want around-the-clock protection against short circuits? Install this ceramic cartridge fuse from Eaton. Its internal wire melts if the current exceeds 6.3A, so you can trust it to stop overcurrents in the blink of an eye. Rest assured, the high 1500A capacity means this unit withstands potentially damaging electricity spikes without being destroyed to prevent arcing damage. Just pop it into a compatible PCB mount or in-line holder and you're good to go.

Features & Benefits

• F fuse speed means this is a fast-acting type that reacts in a snap to protect circuits
• Dimensions of 5 (diameter) x 20mm (length) fit in standard fuse holders
• Nickel-plated end caps resist rust for longevity

What's the difference between ceramic fuses and glass cartridge fuses?

The main difference between ceramic and glass fuses is their durability. Ceramic options, like this one, have higher breaking capacities, making them a better fit for industrial settings where loads are likely to be high.

Can I reset this fuse?

No, this is a sacrificial element, so if it blows, you'll need to replace it immediately to keep your system protected.

Note

Eaton formerly known as Bussmann

Very high breaking capacity
Good mechanical/vibration characteristics

Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.
