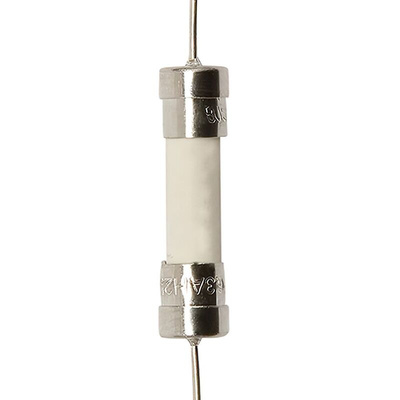

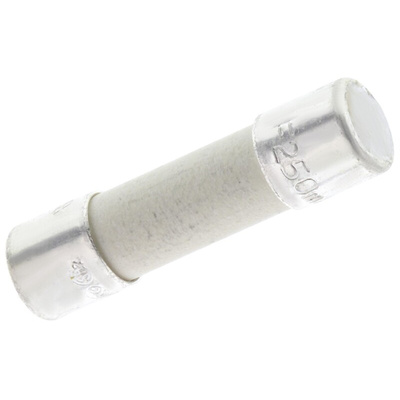

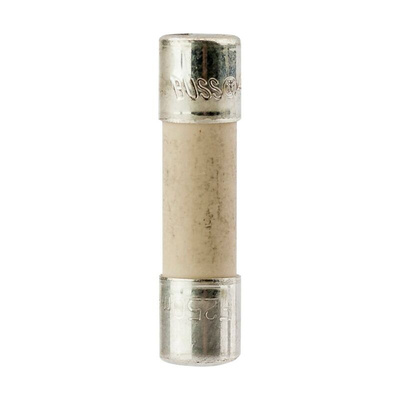

S501-250-R, Eaton 250mA F Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Cartridge Fuse, 32V DC Voltage Rating, 1.5kA Maximum Breaking Capacity - S501-250-R

Give electrical issues the brush off with this Eaton cartridge fuse. It has a fast-blow breaking speed to stop overcurrent as soon as it hits, preventing damage to downstream devices. Highly conductive silver-plated endcaps achieve an effective connection and keep energy moving without a hitch. Don't worry about sudden surges, as this component handles up to 1.5kA to protect against intense overloads. It's also a piece of cake to install, as it plugs neatly into a holder. You'll find cartridge fuses like this used in automotive manufacturing and food production systems.

Features & Benefits

• Standard fuse size of 5 (diameter) x 20mm (length) for wide compatibility
• Insulating ceramic body minimises user exposure to dangerous electrical loads
• Works with AC and DC voltages for versatile installation
• Maximum voltage drop of just 1.3V, providing efficient protection

What's the difference between a fast-acting and a slow-blow fuse?

A fast-acting fuse like this one blows as soon as it detects a current higher than its rated value. With a slow-blow type, the fuse briefly accommodates small amounts of excess current without breaking its circuit, which keeps power flowing through short expected overloads.

Note

Eaton formerly known as Bussmann

Approvals

UL,SEMKO,VDE

Very high breaking capacity
Good mechanical/vibration characteristics

Typical Applications include short-circuit protection of semiconductors such as thyristors, diodes and triacs.
Note that with values of greater than 6.3A the use of open type fuseholders is recommended, to reduce the risk of nuisance tripping at or near full rated current.

Transition to Bussmann Series

Datasheet - Eaton S501
