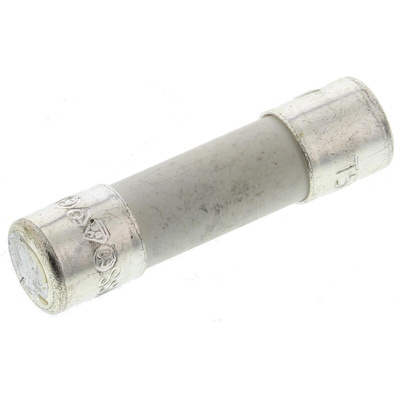

Eaton 500mA T Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

RS PRO Anti Surge (T) HBC - Ceramic Bodied, 5x20

RS PRO anti-surge ceramic cartridge fuses which are designed to prevent damage to electrical equipment. These fuses allow an electric current to flow through until the current goes over the fuses rating then it will blow and stop the flow of electricity. This range of ceramic cartridge fuses are 5 x 20mm with a T speed rating.
RS PRO cartridge fuse packs are available in a range of current ratings with varying resistance values to suit all your requirements. This range is reliable for a broad range of applications.

Features:
Ceramic cartridge
T Speed rated
5mm x 20mm cartridge size

Typical applications:
Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps etc. They can be found in the following areas:
Industrial
Commercial
Home/Residential
Automotive

Additional Information

What size is it?
5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 fuse holder.

What Speed is it?
This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What are fuses used for?
• For the protection of components and equipment from costly damage caused by over-current.
• To isolate sub-systems from the main system once a fault has appeared

What is an over-current?
It is a setting where a circuit experiences a current that is higher than the normal operating current.

What is Breaking Capacity?
Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is HBC (High Breaking Capacity).

Eaton Cartridge Fuse, Ceramic Body, 1.5kA Breaking Capacity - S505-500-R

Say so long to power supply troubles with this cartridge fuse from Eaton. It handles electrical loads up to 1.5kA, keeping your equipment protected against large current surges. As this is a T-speed unit, it's slow-acting, so won't jump the gun and break an attached circuit if it senses a brief overcurrent – only a sustained fault will blow it. Compact dimensions of just 5 (diameter) x 20mm (length) and a cylindrical body shape mean the miniature device slots into busy setups without a hitch. You can rely on cartridge fuses like this one to protect industrial lighting systems as well as domestic appliances.

Features & Benefits

• Halogen-free design for safety
• Ceramic body and nickel-plated endcaps for durability
• Current rating of 500mA to handle everyday electrical loads
• Comes in a pack of 10 for hassle-free stocking

How long is the time delay on this cartridge fuse?

The product holds back on blowing for up to 80s depending on the level of overcurrent. For surge currents over ten times higher than the unit's current rating of 500mA, it breaks your circuit in just 150ms.

Note

Eaton formerly known as Bussmann

RS Pro Datasheet
