S506-50-R, Eaton 50mA T Glass Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Anti Surge (T) LBC Cartridge Fuses - Glass Bodied 5x20 mm

This range of glass cartridge fuses from Eaton Bussmann is ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.

Why choose a glass cartridge fuse?

Glass and ceramic fuses have similar properties. However, you may choose a glass cartridge fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown.

What size is it?

5 mm x 20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5 x 20 mm fuse holder.

What voltage is it?

These cartridge fuses are available with 40mA to 15 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What Speed is it?

This particular cartridge fuse is “T” speed rated which means it is a slow-acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular cartridge fuse is LBC (Low Breaking Capacity).

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

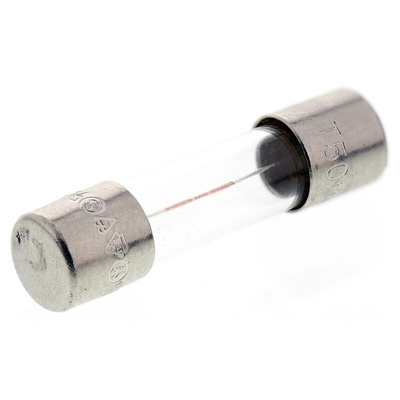

Eaton Glass Cartridge Fuse, 50mA, T Speed S506-50-R

Use this Eaton fuse to protect devices or internal circuits from overcurrent and short circuits. Also known as an anti-surge fuse, this device breaks when current exceeds 35A, preventing any fault current from damaging electrical components or causing electric shocks. This fuse is a T-speed type, which means it's slow-acting and suited to circuits that need to tolerate a sudden rush of current – such as commonly occurs on start-up. Typical applications for fuses like this one include control panels for alarm systems.

• Glass-bodied cartridge means you can easily see that the fuse has blown
• Nickel-plated brass endcaps are robust and won't rust
• Standard cartridge size (5mm diameter x 20mm length) fits a fuse holder widely used in board and panel protection, for versatility

What are cartridge fuses like this used for?

Cartridge fuses isolate sub-systems from the main system once a fault has appeared. You can use them to protect 250V circuits, as well as an entire electrical service. Plug fuses, by contrast, generally protect 120V circuits.

Note

Eaton formerly known as Bussmann

Approvals

VDE, BSI, UL

Datasheet - Eaton S506 Series

Transition to Bussmann Series
