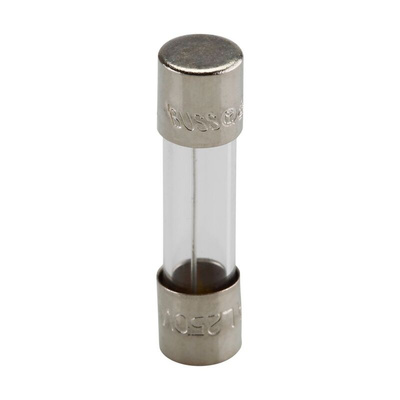

S506-80-R, Eaton 80mA T Glass Cartridge Fuse, 5 x 20mm, Предохранитель

Eaton Bussmann Anti Surge (T) LBC Cartridge Fuses - Glass Bodied 5x20 mm

This range of glass cartridge fuses from Eaton Bussmann is ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.

Why choose a glass cartridge fuse?

Glass and ceramic fuses have similar properties. However, you may choose a glass cartridge fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown.

What size is it?

5 mm x 20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5 x 20 mm fuse holder.

What voltage is it?

These cartridge fuses are available with 40mA to 15 Amp current ratings for applications where the system voltage rating is 250 Volts AC.

What Speed is it?

This particular cartridge fuse is “T” speed rated which means it is a slow-acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular cartridge fuse is LBC (Low Breaking Capacity).

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

Eaton Cartridge Fuse, Glass Body, 35A Breaking Capacity - S506-80-R

Stamp out electrical faults with this cartridge fuse from Eaton. It has a breaking capacity of 35A, so can handle loads up to that level without suffering damage. As it acts with a time delay, it lets small overloads go by without breaking to cut down on disruption caused by low-risk overcurrent. Tight setups are no problem for this fuse, which has standard dimensions of 5 (diameter) x 20mm (length). As it tolerates currents up to 80mA, this is a smart choice for domestic and light industrial applications, such as equipment in workshops and packing plants.

Features & Benefits

• Transparent glass body for at-a-glance status checking
• Blows for current ten times higher than its 80mA rating in 300ms, minimising the potential chance of damage
• Quick tool-free fitting for easy installation
• Comes with conductive nickel-plated end caps for efficiency
• Supplied in a pack of 10 for convenience

What kind of power supply can I use this cartridge fuse with?

The product has a voltage rating of 250V AC, making it widely compatible with mains power sources.

Note

Eaton formerly known as Bussmann

Approvals

VDE, BSI, UL

Datasheet - Eaton S506 Series

Transition to Bussmann Series
