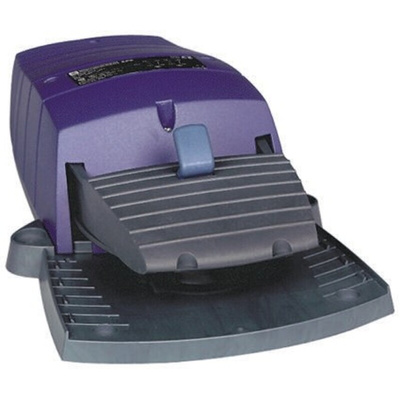

XPEB211, Schneider Electric Industrial Duty Momentary On-Off Foot Switch - Plastic Case Material, 2NO/2NC, 270 mA @ 250 V dc, 3, Ножной выключатель

Schneider Electric Footswitches - XPE Range

A wide range of plastic housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot (or left)! They are available with or without a protective guard cover. The guarded cover types of foot switches are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.

Features & Benefits

• Large surface area of pedal assures stability of foot and provides operator comfort


• High and wide protective cover accommodates large sizes and safety boots


• Can be fixed to the floor or on a support for improved stability


• Approvals - U/CSA


• Schneider Electrics XPE range of industrial footswitches are robust


• A great feature of this range of foot switches is that they allow the operator greater freedom of movement


• Available with or without trigger mechanism in 1 or 2 step configurations


• The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed


• Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines


• The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)
