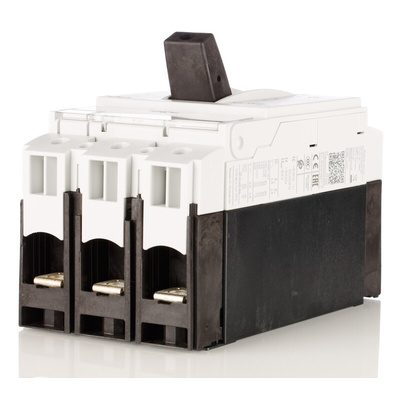

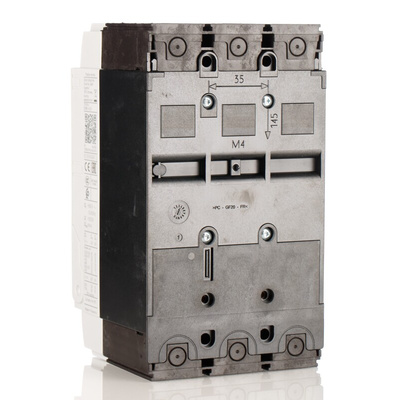

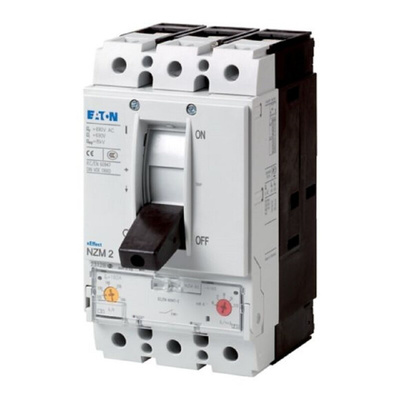

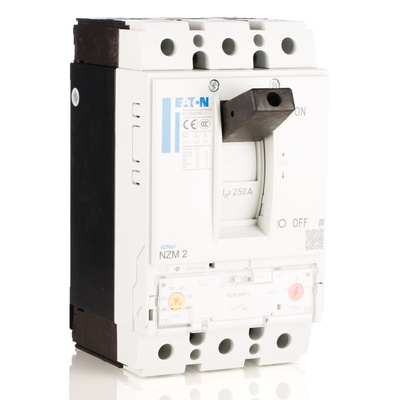

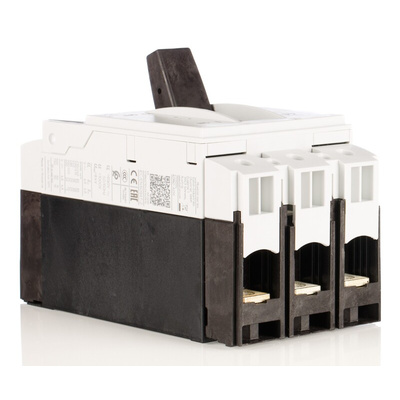

259094 NZMN2-A250, Eaton, xEnergy MCCB 1P 250A, Breaking Capacity 50 kA, Fixed Mount

Eaton MCCB, 690V AC Voltage Rating, 250A Current Rating - xEnergy Series - 259094 NZMN2-A250

Protect your people and equipment with this MCCB from Eaton. You can count on it to safeguard sensitive instruments, motors and automation systems against the risk of damage from short circuits and overloads. The circuit breaker has a maximum breaking capacity of 50kA, so it can bear the brunt of strong surges. You'll find this kind of device used in factories, automotive workshops or industrial processing plants to maximise safety.

Features & Benefits

• Rated voltages of 690V AC and 750V DC, so suitable for high-power applications
• Compact dimensions of 105 (L) x 184 (W) x 149mm (D) to slot into crowded setups
• Trips in milliseconds for instant protection
• Screw connection for simple and hassle-free installation
• Wide operating temperature range between -25°C and +70°C

Is this MCCB touch-proof?

Yes. It has an IP20 rating, which means that it's protected against accidental touch and objects larger than 12mm.

How does an MCCB work?

An MCCB, or moulded case circuit breaker, contains both thermal and magnetic elements. The physical properties of these cause reactions that break a circuit in overload or short-circuit conditions to cut power to downstream equipment.

Note

Eaton formerly known as Moeller
