260127 NZM2-XDV, Eaton Rotary Handle for N (S)2(-4) Series, NZM2(-4) Series, PN2(-4) Series

EATON MCCBs - NZM2 Series

MCCBs, otherwise known as molded case circuit breakers, are devices that offer protection to motors, transformers, generators, and other equipment or systems. The NZM2 range from EATON offers compact breakers with 4 frame sizes and multiple installation and connection options. Available with thermal-magnetic and electronic tripping technology, they feature adjustable time selectivity and earth fault protection. With the option of on-board diagnostics and data logging on some models, for monitoring of critical circuits without the need for additional hardware. Discrete relay outputs available for high load warnings at 70%, 100% and 120%.

EATON's NZM range also features circuit breaker accessories, and IEC switch disconnectors offering a broad portfolio of products.

Features and Benefits:

• 3 and 4 pole versions available
• 15A to 1600A current rating available
• Multiple installations and connection types available
• Easy fitting of undervoltage and shunt strips
• Diverse range of settings
• Tripping in milliseconds
• Circuit protection
Standard black/grey handle 537-5719, Red/ yellow for emergency handle 537-5725.

Applications:

Ideal for panel builders, automation, engineering, and machinery OEMs. MCCBs offer overload protection from damage of excess current, overloads and short circuit, essential for motors, power generators, transformers, and other electrical equipment.

Standards

IEC/EN 60204; IEC/EN 60947; VDE 0660

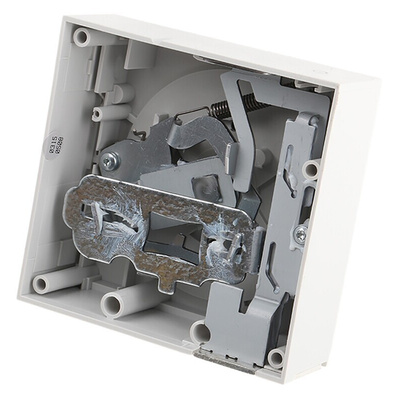

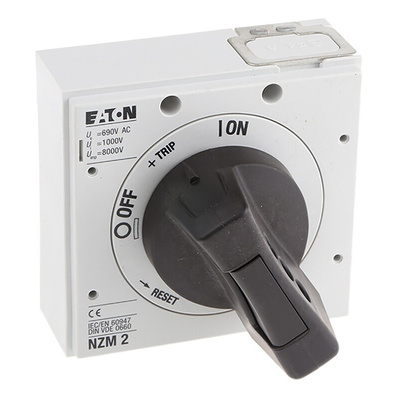

Eaton Lockable Rotary Handle for use with NZM2 Series MCCBs - NZM2-XDV

This lockable rotary handle from Eaton enable users to operate a switch with a type of rotational movement, facilitating locking facilities.

• Designed to be directly fitted to the NZM2 range of MCCBs
• Complete with rotary drive
• The rotary handle is lockable whilst in the 0 positions on the switch, using up to 3 padlocks
• Has the option to be combined with surrounding insulations
• MODAN type handle position detection by wire release can be retrofitted
• The circuit breaker can also be installed in a lying position 90° left or right, with the handle still in the same position
• Comprised of a strong and robust material

Note

Eaton formerly known as Moeller
