440N-G02155, Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 250V ac, Stainless Steel Housing, NC, 4m Cable, Выключатель

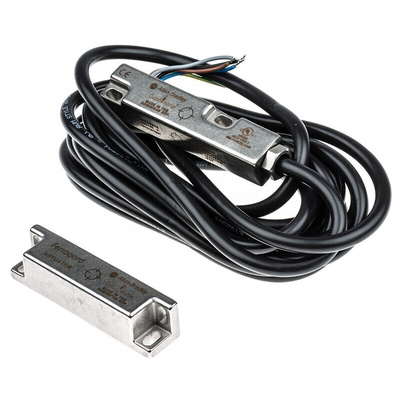

Allen Bradley Guardmaster Ferrogard 440N-G02155 Magnetic Non-Contact Safety Switch

Provide exceptional protection for machine operators by securing your guard door with the Ferrogard 440N-G02155 Magnetic Non-Contact Interlock switch, 250V ac with stainless-steel housing, by Allen Bradley Guardmaster.

This safety interlock switch is specially designed for use on machine guards and gates to limit access to hazardous areas where dangerous machinery may be in motion. When the safety guard is opened and the magnetic actuator is released from the switch the NC safety contacts will open, resulting in the immediate isolation of supply power to the machine. It offers high tolerance to misalignment with the reliability of non-contact switches to minimise downtime.

It can be mounted to fit narrow areas due to its slim design. It has durable housing made of stainless-steel to ensure that it is protected against inadvertent impacts. It has internal non-resettable overload protection on the safety contact and is environmentally sealed to IP67 (NEMA 6P), making it well suited for use in wet environments. It features two active sensing faces to allow flexibility of mounting options.

This Ferrogard 440N switch has a supply voltage of 250V ac at 2A current, comes with FRS13 housing and a 4m cable, and has 1NC Safety Contact and 1NC Auxiliary Contact. It has a sensing distance of 12mm (Make) to 23mm (Break) and an operating temperature range of -10°C to +65°C.

Note: This device can be used with Guardlink, a new safety linking technology from Allen Bradley GuardMaster. Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over an Ethernet IP. This makes it simple to identify the location of the device that has tripped the system, thus reducing downtime and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.

Features and Benefits:

• Resilient stainless-steel housing provides enhanced protection against impacts to the housing
• Non-contact actuation which allows instant release of the guard door, offers simple-set up, and ensures a long service life
• Large sensing fields provides high tolerance to door misalignment
• Can easily accommodate narrow mounting areas due to slim housing design
• High switching current
• Flexible mounting options due to two active sensing faces
• Sealed to IP67 (NEMA 6P) rating – fully protected against dust ingress and can withstand temporary immersion in water

Certifications:

EN954-1
IP67 rated
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
ANSI B11.19
AS4024.1
CE certified
UL listed

Allen Bradley Guardmaster have an extensive range of safety switches and machine guard monitoring devices that are built to global standards for quality and reliability. Their cost-effective solutions are expertly designed to meet every requirement and improve safety and productivity in the workplace.

What are the advantages of non-contact safety switches?

Non-contact safety switches have a long service life as they are highly resistant to shocks and vibrations, take less wear and tear, and require little maintenance. They also cannot be easily tampered with or manipulated. They are often used in industrial applications, such as machine monitoring and guarding in factory production lines, and are often used with sliding, hinge and lift-off doors. Allen Bradley Guardmaster is a world leading brand for machine safety components and their products are rigorously tested to provide you with maximum security.
