2CSF202001R1250 F202 AC-25/0,03, ABB F200 RCCB, 25A, 2 Pole, 30mA, Type AC, 230V, Автоматический выключатель

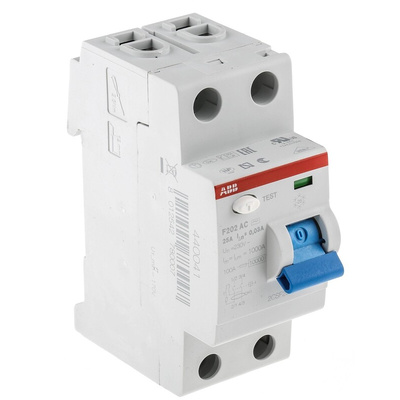

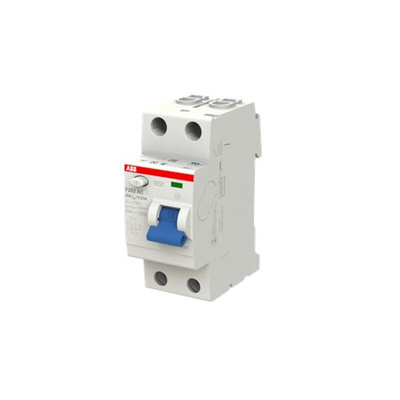

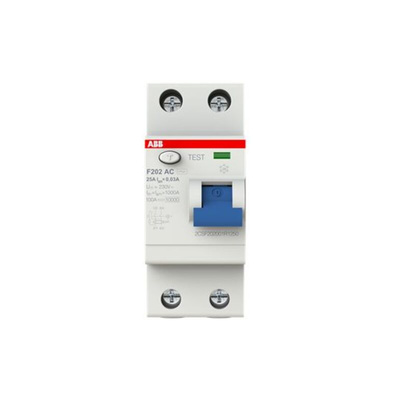

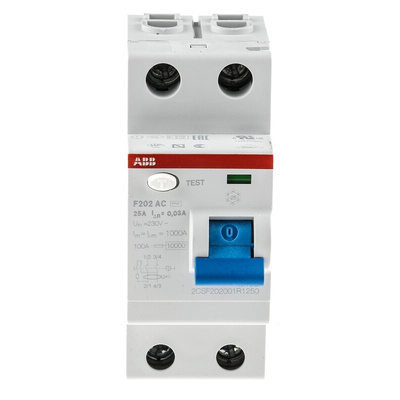

ABB RCCB, 230V Rated Voltage, 2 Poles - F200 Series - 2CSF202001R1250

Prevent electrical fires and the risk of shocks with this 2-pole RCCB from ABB. When installed in a circuit, it accurately monitors the current levels and makes sure no electricity escapes the system to cause injury or damage. It's designed to compare incoming energy in the live wire to the outgoing neutral channel. If these values differ by up to 30mA, the unit registers a residual current and responds by tripping the circuit. This RCCB has a wide operating temperature range between -25°C and +55°C, so you can use it safely in challenging conditions.

Features & Benefits

• Dimensions of 69 (L) x 35 (W) x 85mm (H) for use in compact setups
• IP2X rating for protection against small objects no greater than 80mm in length and 12mm in diameter

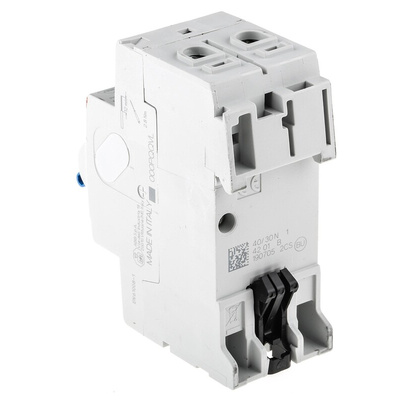

• DIN-rail mount type for quick and simple installation

Applications

• Frequency converters
• Medical equipment
• UPS systems

Is this RCCB rated for AC or DC residual current?

This straightforward unit is designed for AC current monitoring.

Can this RCCB withstand voltage surges?

Yes, as indicated by its impulse withstand voltage, this RCCB can safely handle surges of up to 4kV.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
