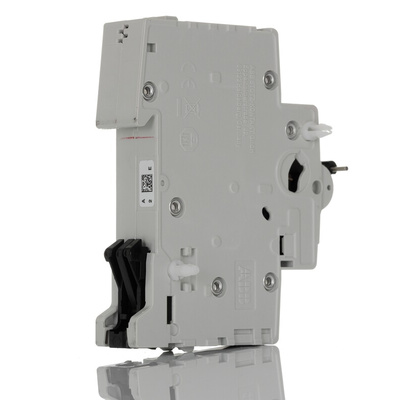

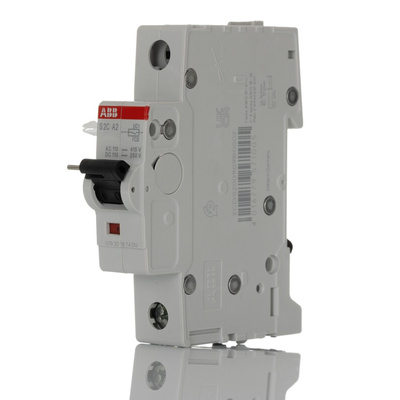

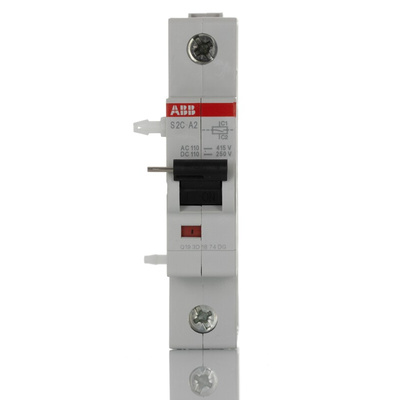

2CDS200909R0002 S2C-A2, ABB 110 → 250 V dc, 110 → 415V ac Shunt Trip Shunt trip for use with S200, S200P, S200M, S200S, DS200AC,

ABB Shunt Trip, DIN Rail Mounting, 17.5mm Width - System Pro M Compact Series - 2CDS200909R0002

When moments matter, cut power quickly with this shunt trip from ABB. It's a handy accessory that's used to remotely trip an RCBO or MCB under hazard conditions. Hooking it up to a sensor such as a fire alarm or to a stop button ensures machines can be turned off promptly in an emergency to boost equipment and user safety. There are pins on the shunt's side that clip directly to a breaker, so no space is wasted in your setup.

Features & Benefits

• Red and green indicators make it easy to see the contact position
• Compact width of 17.5mm means it only takes up one unit of space on your DIN rail
• No special tools needed for installation, keeping set-up straightforward

Applications

• Transport industry
• Industrial automation
• Energy storage and generation
• Data centres

What type of MCB or RCBO does this shunt trip work with?

You'll find this shunt trip is a good match for the S200 series MCBs and DS 200 series RCBOs. This includes single-pole and three-pole MCBs, as well as four-pole RCBOs.

ABB Accessories

Note

These contacts can not be used with type ESB20 installation contactors, only higher types e.g. ESB24
