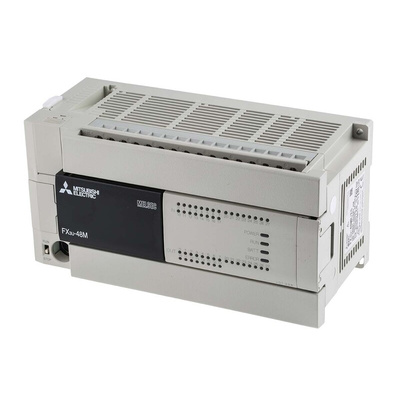

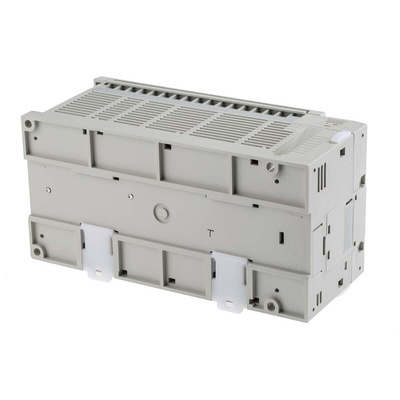

FX3U-48MR/ES, Mitsubishi FX3U Series Logic Module, 100 → 240 V ac Supply, Relay Output, 24-Input, Sink, Source Input, Логический модуль

Mitsubishi Logic Module

The Mitsubishi FX3U series logic module has 24 inputs and 24 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for the applications that require a larger space. The logic module has a voltage rating that ranges between 100VAC and 240VAC.
Mitsubishi FX3U
FX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's.

Features and Benefits

Operating temperature ranges between 0°C and 50°C
High processing speed
64K steps battery-backed RAM memory
249 applied instructions, 7680 auxiliary relays, 512 timers, 251 counters and40768 data registers
0.065μs basic instruction
Backward compatibility

Applications

Industrial
Factory automation

FX3U F.A.Q.

Datasheet

FX3U 24 IN 24 Relay Out Hardware Manual

UN38.3 Lithium Battery Test Summary
