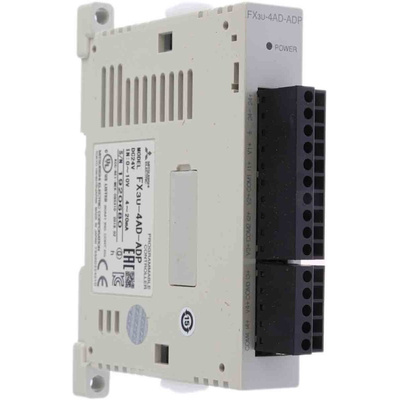

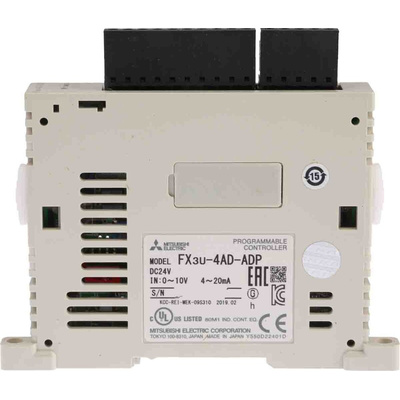

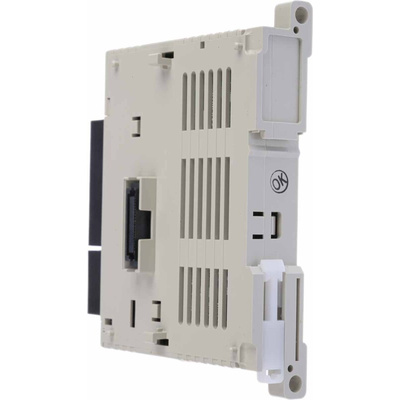

FX3U-4AD-ADP, Mitsubishi FX3U Series Series PLC I/O Module for Use with FX3U Series, Analogue, Модуль

Mitsubishi Analogue Input Module

The Mitsubishi analogue input module a state-of-the-art device equipped with 4 output channels suitable for 0-10V and 4-20mA analogue inputs. These analogue adapters provide complete versatility, where each channel can be independently configured for either voltage or current control signals. These modules fit on the left-hand side of the PLC base units. The input modules are added depending upon the size of the base units.
Note
:
These modules fit on the left-hand side of FX3U base units and require one of the following modules to connect to the PLC: FX3U-232-BD (539-0869), FX3U-422-BD (539-0875), FX3U-485-BD (539-0881), FX3U-USB-BD (539-0897), FX3U-CNV-BD (539-0904). The supply voltage is taken from the PLC base unit.
Mitsubishi FX3U
FX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's.

Features and Benefits

11-12bit resolution

Applications

Industrial automation
Robotics
Automobile industry

Certifications

CE
UL/cUL certified
