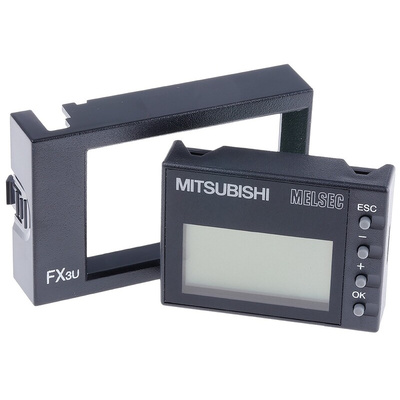

FX3U-7DM, Mitsubishi Display Module, 5 V dc, Терминал

Display Module

The FX3U 7DM display module allows users to monitor and change timers, counters, data registers, internal flags etc in FX3U PLCs via a backlit LCD display and four buttons.,The FX3U-7DM-HLD (stock no. 539-0932) allows the 7DM display module to be panel mounted away from the PLC (kit includes cable to PLC).

Fits into front of PLC
Allows access to all internal devices
Time and date display
Can transfer programs to/from memory cassettes with this module
Messages can be displayed by writing code in PLC to drive display

Note

Compatible with FX3U units only.

Display: 16 characters x 4 lines
Current consumption: 20mA

Mitsubishi FX3U

FX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's.
