19428-0013, Molex MX150L Series Straight Through Hole PCB Header, 8 Contact(s), 5.84mm Pitch, 2 Row(s), Shrouded

MX150L Headers - Vertical and 90°

Note

For mating MX150L 19418 Series Receptacles see stock number 511-0102 typical.

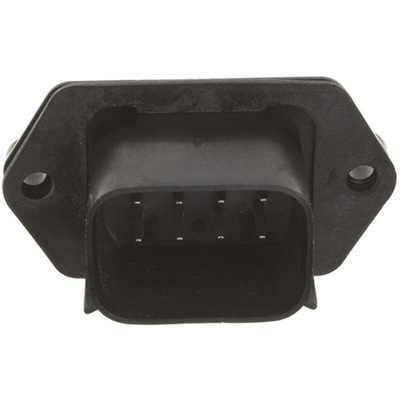

Molex MX150L Straight PCB Header, 8 Way, 2 Rows - 19428 Series - 19428-0013

Looking for a way to establish secure and reliable connections between your components and PCBs (printed circuit boards)? This robust Molex PCB header is a fully shrouded unit that ensures uninterrupted transfer of power and data signals. The eight contacts are arranged in two rows, so you can connect up to eight different power and data supplies and organise your connections to maximise space. For safety, the sealed unit prevents short circuits that can damage your PCBs and connected components. Use this header for signal and power applications that need up to 18A of current.

• IP67 (ingress protection) rating means it's completely dust-proof and can withstand submersion in up to 1m of water for at least 30 minutes
• Integral locking latch secures connectors to the PCB header for reliable signal and power transfers
• Tin-plated copper alloy contacts are corrosion-resistant and highly conductive to ensure a reliable connection

Applications

• Automotive industry
• Video surveillance systems
• Sensor lighting applications
• Industrial assembly lines

Do I have to assemble the casing for this PCB header?

This Molex PCB header doesn't need any assembly, as the casing and seals come preassembled. This ensures the header is isolated, so it won't disconnect if subjected to vibrations and impacts.

Molex MX150L Sealed Connector System

Rugged, environmentally sealed connector system tested to IEC IP 67 that supports both low level signal and power applications up to 18 amps. Applications include: automotive, industrial control, video surveillance, outdoor lighting and machine tools.

Connector housings and seals pre-assembled
2 to 10 Circuit
IP67 rated
Integral Locking Latch
14-16 and 18-22 AWG options

194280013 Technical Drawing

Datasheet

Line Drawing
