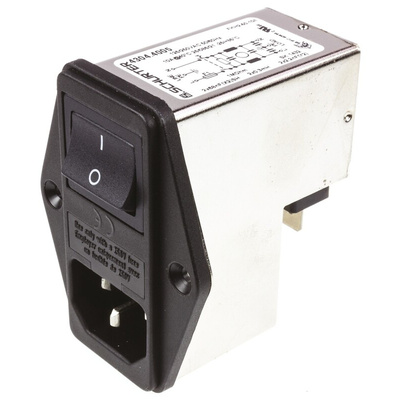

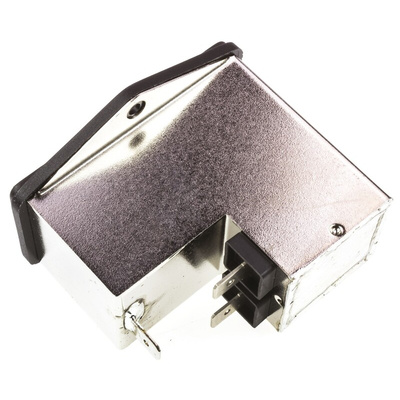

Schurter 10A, 250 V ac Male Panel Mount Filtered IEC Connector 4304.4005 None Fuse, Фильтр

Mains filters with fuse and 2-pole switch - FKH series

A comprehensive range of C14 mains filters with fuse and 2 pole switch, suitable for a wide range of inlet power panel mount applications, for use with C13 connectors.

Standard filters fitted with a single Ø 5 x 20 mm fuse and a 2-pole switch for the mains supply, thereby offering a connector, switch, fuse and filter in one device. This guarantees limited assembly time and compact dimensions.
Fuse not provided.

Schurter Inlet Filter

The Schurter FKH series inlet filter is a male, panel mount type C14 IEC connector with a dual fuse. It is ultra-compact, panel mount screw-on version from the front side and has four key functions. The filter has a voltage rating of 250VAC with a high-performance current rating of 10A. It has a 1-pole Fuseholder for fuse-links of 5mm x 20mm and a 2-pole line switch. It acts as a line filter in the standard version and has class I inlet protection.

Features and Benefits

Nickel plated steel body
Quick connect terminals of 6.3mm x 0.8mm
All the single elements are already wired
Plug removal necessary for fuse-link replacement
Innovative EMC shielding
Operating temperature ranging between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
IEC 60950 / 60939 / 60601-1
EN 133200
