DATAMAN-40PRO, Dataman Dataman 40Pro, Universal Programmer for EEPROM, EPROM, FLASH, MCU/MPU, NV Ram, PLD, Serial EEPROM, Static RAM

Dataman Universal ISP Programmer

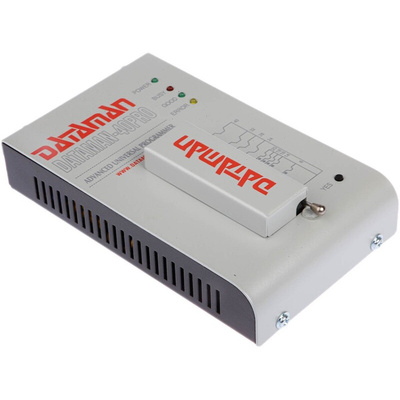

The Dataman universal ISP programmer is a PC based universal 40-pin programmer with ISP capabilities and USB 2.0 connectivity. The 40Pro is built to meet the demands of development labs and field engineers for universal and portable programming. Over 37,000 devices supported and new devices are added every month. Dataman 40Pro is a small, fast and powerful programmer designed for a wide range of programmable devices. Using the built-in in-circuit serial programming (ISP) connector, this programmer can program ISP capable chips in-circuit. 40Pro is not only a programmer but also a static RAMs tester.

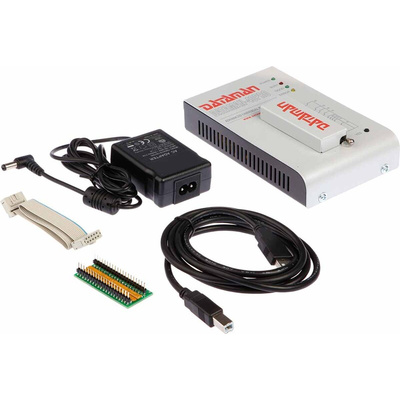

Supplied with:

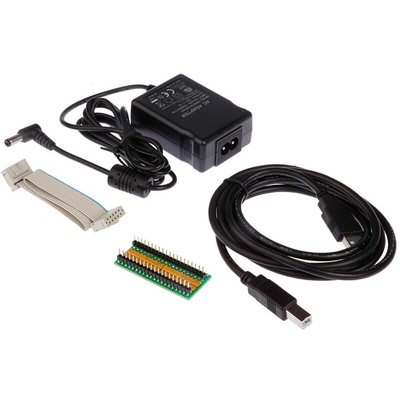

Mains power supply, USB cable, ISP cable, diagnostic POD for programmer testing, anti-dust cover for ZIF socket, user manual and software

Features and Benefits

Easy to use software that is compatible with the latest operating systems including Windows 10
Free lifetime software updates
Full ISP capabilities including JTAG compatibility
High-speed USB 2.0 connectivity
Intelligent pin drivers operate down to 1.8V so you'll be ready to program the full range of advanced low-voltage devices

Dataman 40Pro User Manual

Dataman 40Pro Datasheet

ESD Control Selection Guide V1

Dataman-40Pro Device List
