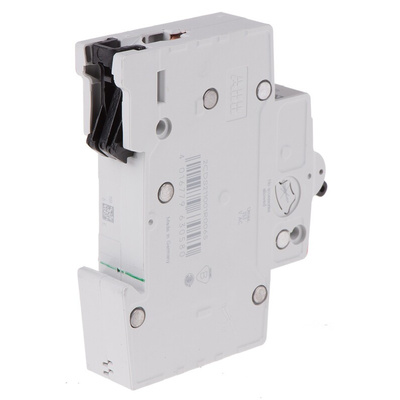

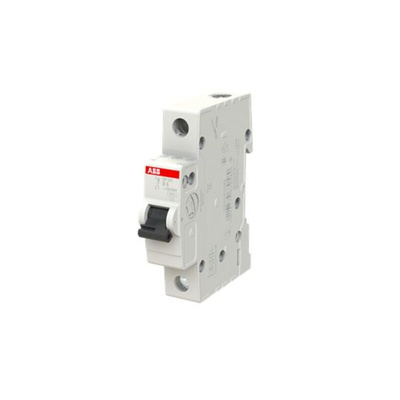

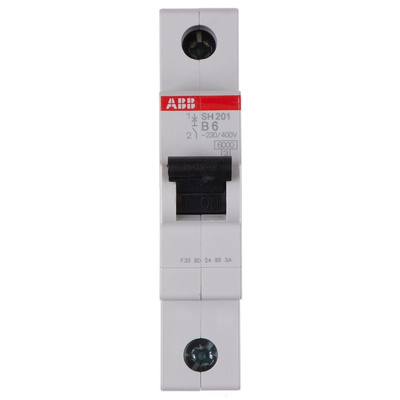

2CDS211001R0065 SH201-B6, ABB Compact Home SH200 MCB, 1P, 6A Curve B, 400V AC, 60V DC, 6 kA Breaking Capacity

ABB MCB, 230V AC Rated Voltage, Screw Terminal Type - SH200 Series - 2CDS211001R0065

Use this MCB from ABB to protect your equipment from electrical faults. When the current exceeds a designated safe level, the metal strip inside the device heats up and bends in a way that breaks the attached circuit. The product's Type B rating indicates it trips if it receives current between 3 and 5 times the 6A rated load capacity. For extra protection, it's designed to trigger should any residual current of up to 6kA escapes the system.

Features & Benefits

• Rated impulse withstand voltage of 4kV for reliable electrical safety
• IP20 rating indicates it's touch-proof and protected from objects larger than 12mm
• DIN-rail mounting type for simple installation
• Dimensions of 17.5 (W) x 85 (H) x 69mm (L) let you install it in busy setups

Applications

• Non-inductive lighting circuits
• General-purpose outlets
• Domestic appliances

Can I use this MCB in challenging environments?

Yes, the device has a wide operating temperature range between -25°C and +55°C, so you can rely on it for safe use in harsh industrial setups.

How much does this MCB weigh?

The unit is lightweight at 125g, so it won't put strain on your system.

Standards

BS EN 60898

ABB Compact Home

Datasheet - 2CDS211001R0065 SH201-B6

Catalogue - Compact Home

Disassembly Instructions

Product Environmental Profile
