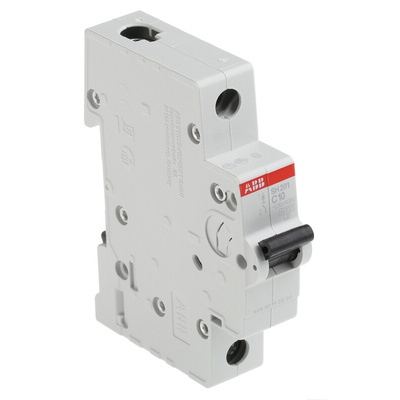

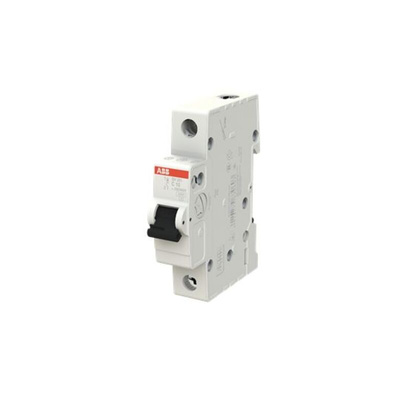

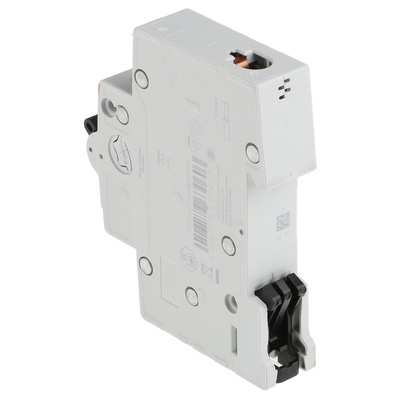

2CDS211001R0104 SH201-C10, ABB Compact Home SH200 MCB, 1P, 10A Curve C, 440V AC, 60V DC, 6 kA Breaking Capacity

Type C Single Pole 6kA

Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance tripping might occur if a faster type was used.

DIN rail mounting
Complies with BS EN 60898
Operating temperature range of -25°C to +55°C
Standard 17.5mm width
Max. operating voltage: 440Vac, 60Vdc

ABB MCB, 1 Pole, 4kV Rated Impulse Withstand Voltage - SH200 Series - 2CDS211001R0104

Looking for a compact protection solution for your electronic circuits? Choose this miniature circuit breaker from ABB. With dimensions of 85 (H) x 17.5 (W) x 69mm (D), it's suitable for use in setups with limited space. The device works by monitoring single-phase networks and cutting power in the event of an overcurrent or short-circuit, preventing damage and prolonging the lifespan of attached appliances. It has type-C tripping characteristics, which means that it's triggered instantly at five to ten times its 10A-rated current, making this a suitable option for applications that experience some electrical inrush.

• 4kV rated impulse withstand voltage to handle sudden power spikes without damage
• Thermoplastic housing offers durability and impact resistance for use in harsh environments
• Broad operating temperature range between -25°C and +55°C makes it suitable for demanding conditions
• Can be used on both AC and DC networks for versatility
• Screw termination method is simple and doesn't need complex tools

Applications

• Domestic wiring
• Industrial lighting systems
• Medical facilities

Is this MCB finger-safe?

Yes, this MCB has an IP20 rating, meaning that it's protected from objects larger than 12mm, including your fingers.

Standards

BS EN 60898
