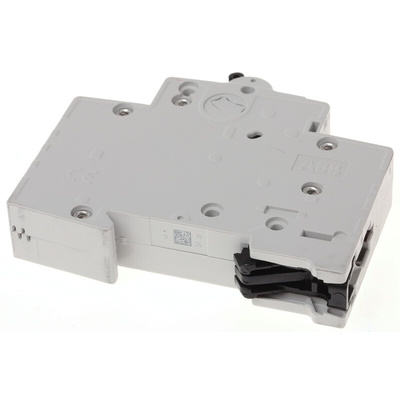

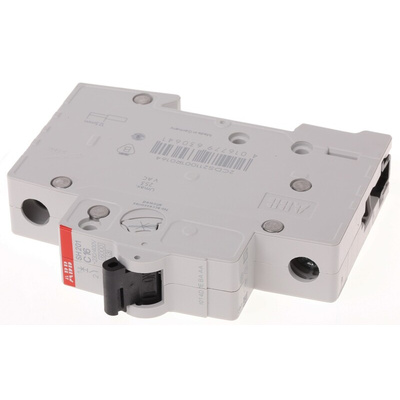

2CDS211001R0164 SH201-C16, ABB Compact Home SH200 MCB, 1P, 16A Curve C, 440V AC, 60V DC, 6 kA Breaking Capacity

ABB MCB, 4kV Rated Impulse Withstand Voltage, Screw Terminals - SH200 Series - 2CDS211001R0164 SH201-C16

Need a compact circuit protection solution for your electrical system? Go for this MCB from ABB. Its type-C tripping characteristics mean it breaks when the supply current is 5 to 10 times higher than its 16A current rating. This makes it a sound choice for systems where errors are common, as it cuts down on nuisance trips. With a breaking capacity up to 6kA, the unit withstands high power surges. It's rated IP40 when installed in an enclosure with a cover, which means it’s finger-safe and protected from tools and wires over 1mm in size.

Features & Benefits

• DIN rail mounting means it's easy to install inside control panels
• Low power loss of 2.5W for energy efficiency and minimal heat dissipation
• Screw terminals make installation quick and easy without the need for complex tools
• Maximum tightening torque of 2Nm for a secure connection to your equipment

Applications

• Industrial motors
• Telecommunications networks
• Schools and colleges

What type of conductors can I use with this component?

You can wire this versatile breaker with rigid, flexible or stranded conductors. You can also attach it to a busbar, depending on your setup.

Standards

BS EN 60898
