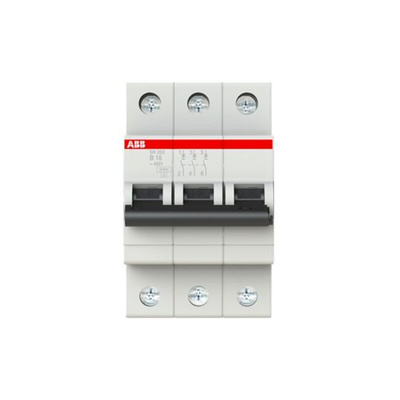

2CDS213001R0165 SH203-B16, ABB Compact Home SH200 MCB, 3P, 16A Curve B, 440V AC, 6 kA Breaking Capacity

ABB MCB, DIN Rail Mounting, 6kA Breaking Capacity - SH200 Series - 2CDS213001R0165

Help to keep domestic electric circuits operating safely with this MCB from ABB. It uses thermal and electromechanical mechanisms to protect against overloads and short circuits. A breaking capacity of 6kA means it's suitable for handling surges in low-power systems. Type B tripping characteristics ensure the device disconnects the circuit as soon as it detects currents between three and five times its rated load of 16A. This minimises potential electrical damage to lighting and appliances when faults occur.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C, for installation in demanding environments
• Toggles are clearly labelled 'on' and 'off' for ease of use
• Electrical lifespan of 20,000 cycles for durability
• Screw terminals for a secure connection to circuits

Applications

• Consumer units
• Safety circuits
• Building management

What size is this MCB?

This MCB has dimensions of 85 (H) x 52.5 (W) x 69mm (D), making it a compact safety device.

How do I mount this MCB?

You can mount the unit on a standard DIN rail using an integral clip at the back. It's mountable in any position for flexibility.

Standards

BS EN 60898
