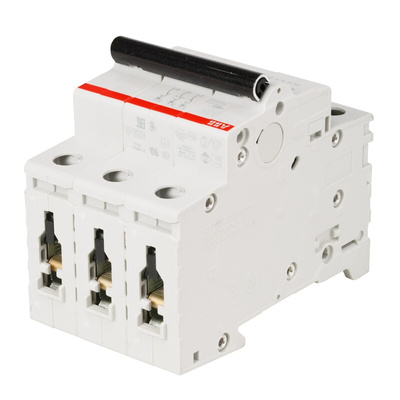

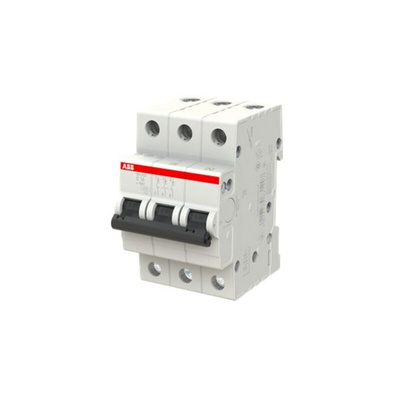

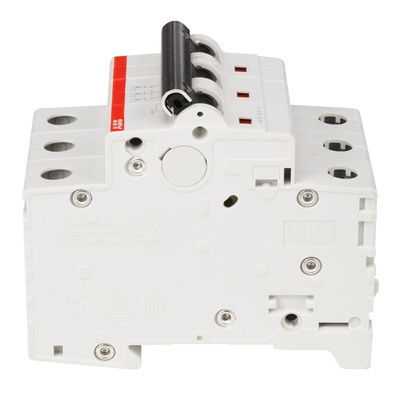

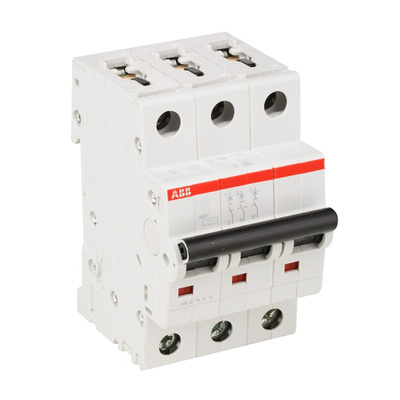

2CDS213001R0104 SH203-C10, ABB Compact Home SH200 MCB, 3P, 10A Curve C, 440V AC, 6 kA Breaking Capacity

ABB MCB, 3 Pole, IP20 Rating - SH200 Series - 2CDS213001R0104

Safeguard your residential electrical installations with this MCB from ABB. It's fitted with both electromagnetic and thermal mechanisms to protect against overloads and short circuits. The type C tripping characteristic means it's designed to break the circuit quickly when currents between 5 and 10 times the 10A rated load are detected. A 6kA breaking capacity makes it suitable for domestic and low-voltage commercial and industrial circuits. Built with a compact width of 52.5mm, this device is easy to fit onto consumer units and small enclosures. A toggle with on and off indicators makes it simple to use.

Features & Benefits

• Lifespan of 20,000 mechanical and 10,000 electrical operations for durability
• Fastening clip with a spring helps to prevent accidental disconnection from the DIN rail
• Mountable in any position for installation flexibility
• Wide operating temperature range between -25°C and +55°C makes it suitable for use in demanding environments

Applications

• Residential buildings
• Light industry
• Offices
• Fluorescent lighting systems

What type of terminals does this MCB have?

This MCB has screw-cage terminals, so you can be sure of secure wire connections. As it has wide terminals, it accepts cable sizes up to 35mm².

Standards

BS EN 60898
