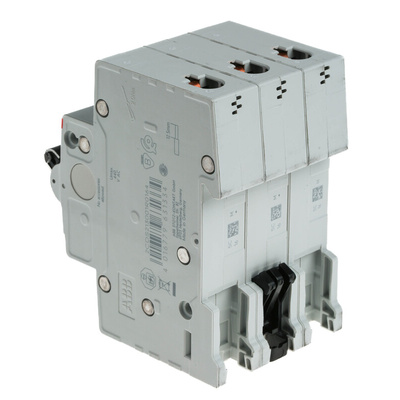

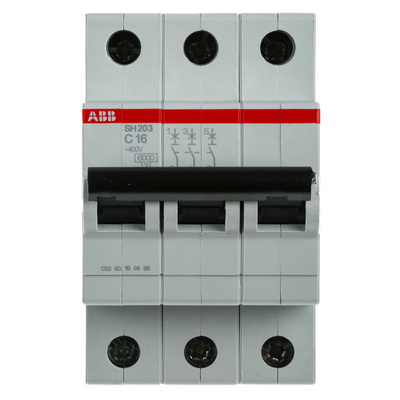

2CDS213001R0164 SH203-C16, ABB Compact Home SH200 MCB, 3P, 16A Curve C, 440V AC, 6 kA Breaking Capacity

ABB MCB, 6kA Breaking Capacity, 16A Current Rating - SH200 Series - 2CDS213001R0164

Ensure safe working conditions in your industrial environment using this MCB from ABB. It's designed to cut off power to downstream equipment if it detects a current overload or short circuit, protecting personnel and equipment from hazards. For easy use, the unit has a front toggle switch so you can simply reset it when the fault has been cleared. A mechanical endurance of 20,000 cycles means you can rely on this component for long-term performance. Thanks to its type-C design, it trips at between 5 and 10 times its 16A rated current, making it safe to use in commercial areas.

Features & Benefits

• Light weight of 0.375kg for reduced strain on equipment
• Screw terminals for secure electrical connection
• Operating temperature range between -25°C and +55°C for safe use in harsh environments
• Shock and vibration resistance for added durability

Applications

• Telecommunications
• Construction industry
• Commercial buildings
• Electrical engineering

How do I mount this MCB?

You can quickly mount this MCB by simply clipping it on a DIN rail. Thanks to compact dimensions of 85 (height) x 52.5 (width) x 69mm (depth), it uses minimal space in your setup.

Standards

BS EN 60898
