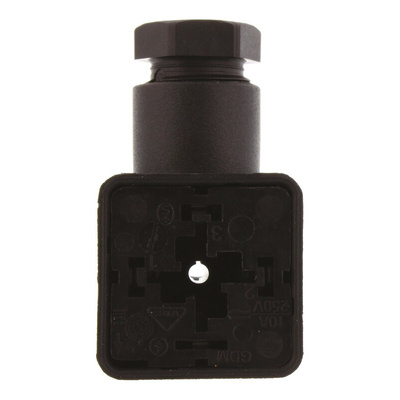

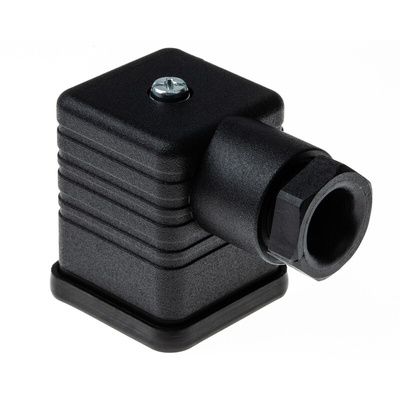

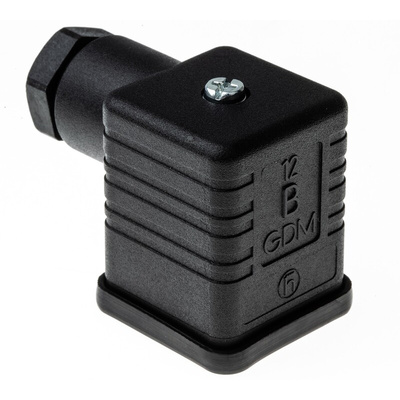

935980321 RS GDM 3016 schwarz, Hirschmann GDM 3P+E DIN 43650 A, Female Solenoid Valve Connector, 250 V Voltage, Разъем

GDM Series

GDM series valve connectors are suitable for use in machine building and tooling, equipment manufacturing, designed to facilitate power and signal transmission for components such as magnetic valves, pressure transducers flow monitors and temperature sensors. These durable valve connectors are not affected by voltage surges or electro magnetic interference.

No gasket supplied with the product

Note

These connectors are only suitable for power coupling to a fixing point or item of plant, or for internal wiring of equipment. These items require a gasket which must be purchased seperately.

Approvals

UL recognised, CSA certified, VDE.

Belden Hirschmann Female Solenoid Valve Connector, 3P+E, 16A - GDM Series - 935980321 RS GDM 3016 schwarz

This solenoid valve connector from Belden Hirschmann features an M16-size cable gland and is an ideal choice for safeguarding pneumatic and hydraulic systems. For reliable electrical safety, it has a three-pole earthed format, which protects against voltage surges and electromagnetic interference. This high-energy valve connector can handle up to 250V of power, making it a reliable choice for both industrial and residential applications. It's a female valve connector and features screw-down mounting and termination methods for easy installation.

Features & Benefits

• Suitable for connector cables with a diameter of 4.5 to 10mm
• Polyamide housing for durability, thermal resistance and abrasion resistance
• Operating temperature range of -40°C to +125°C for safe use in demanding industrial environments

Applications

• Temperature control sensors
• Pressure transducers
• Pneumatic and hydraulic systems

What does this unit's IP65 (ingress protection) rating mean?

This connector has an IP65 rating, meaning it is protected against low-pressure water jets, condensation and dust ingress. This means that is suitable for outdoor applications when used with a protective gasket and weather-resistant valves and cables.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Cable socket angled Datasheet

Gasket Datasheet
