934393106 GDM 2016 grey, Hirschmann GDM 2P+E DIN 43650 A, Female Solenoid Valve Connector, No, 250 V Voltage, Разъем

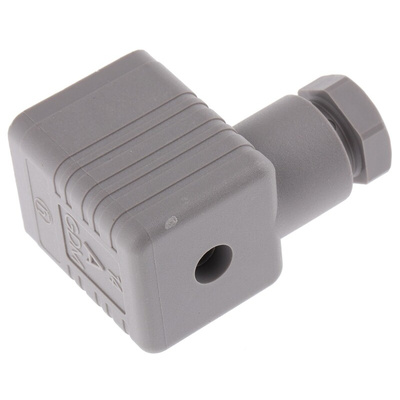

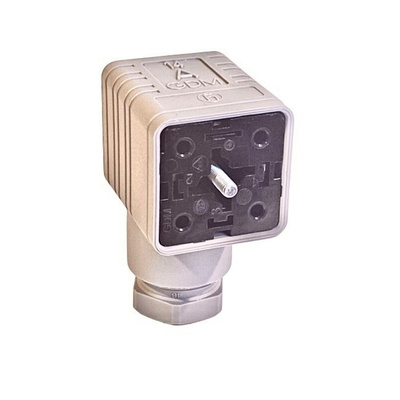

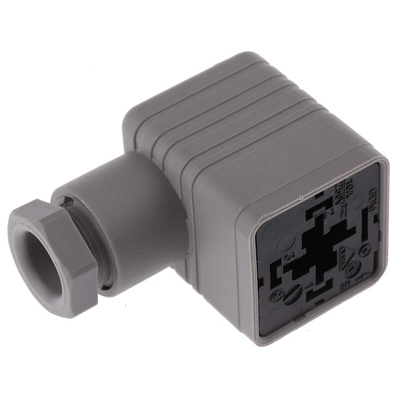

Belden Hirschmann Solenoid Valve Connector, M16 Cable Gland Size, Screw Down Termination - GDM Series - 934393106 GDM 2016 grey

Need an easy way to secure valves to your system? Switch to this solenoid valve connector from Belden Hirschmann. It efficiently transmits power and signals to solenoid valves to keep your system running smoothly. The standard M16 cable gland and screw-down termination style make installation a breeze. You can also add a gasket (156-4729) if it's important to keep the connection EMI-free.

Features & Benefits

• Suitable for cable diameters between 4.5 and 10mm so it's versatile
• DIN 43640 A-type connector for compatibility with standard equipment

Applications

• Industrial engineering
• Machine tooling
• Manufacturing facilities

Can I use this connector in areas that are washed down regularly?

Yes – with a gasket fitted, this connector has an IP65 rating, so it's protected against the strong jets of water you get in washdown conditions.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

731 531-002 Datasheet

Brochure - Valve Connectors
