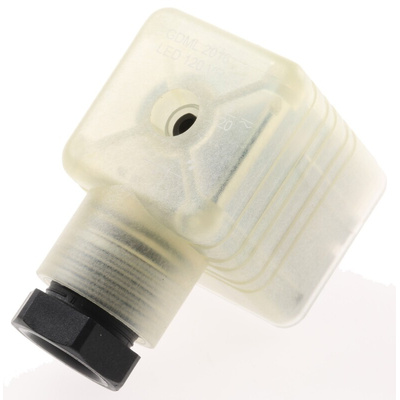

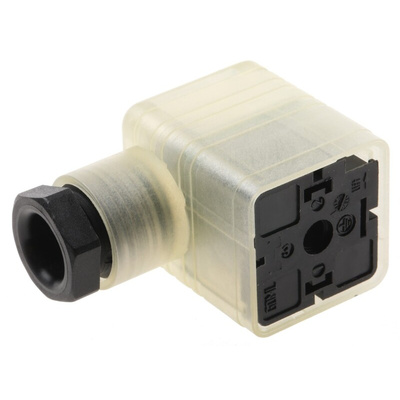

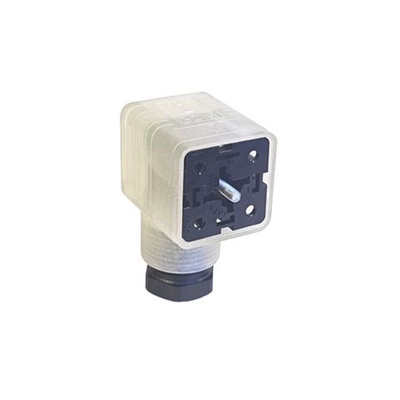

934424002 GDML 2016 LED 120 VR YE black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 120 V Voltage, Разъем

GDML Series

GDML series valve connectors are suitable for use in machine building and tooling, equipment manufacturing, designed to facilitate power and signal transmission for components such as magnetic valves, pressure transducers flow monitors and temperature sensors. These durable valve connectors are not affected by voltage surges or electro magnetic interference.

Electronic insert

Note

These connectors are only suitable for power coupling to a fixing point or item of plant, or for internal wiring of equipment.

Belden Hirschmann Solenoid Valve Connector, 8A Supply Current, M16 Cable Gland Size - GDML Series - 934424002 GDML 2016 LED 120 VR YE Black

Use this solenoid valve connector from Belden Hirschmann to create a setup for pneumatic and signal transmission operations. A 120V DC input voltage makes it a suitable choice for low-powered systems. For easy status monitoring, the device comes with a built-in indicator light. As it features a circuit protection system, you can be sure that power surges or electromagnetic interference won't interrupt your workflow. The unit is easy to install, thanks to screw-down mounting and termination methods.

Features & Benefits

• Accepts cable diameters of 4.5 to 10mm for versatility
• IP65-rated so it's dust-tight and protected against low-pressure water jets from all angles
• Lasts for up to 50 mating cycles, so offers a long service life

Applications

• Temperature sensors
• Pressure transducers

What pole format does this solenoid valve connector use?

It has a two-pole plus earth contact format, so it's safe to handle.

Type A DIN 43650 Hirschmann

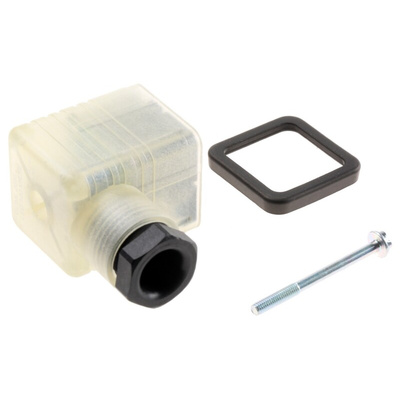

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

GDML Series Connectors Catalogue Extract

Datasheet - 934424002 GDML 2016 LED 120 VR YE black
