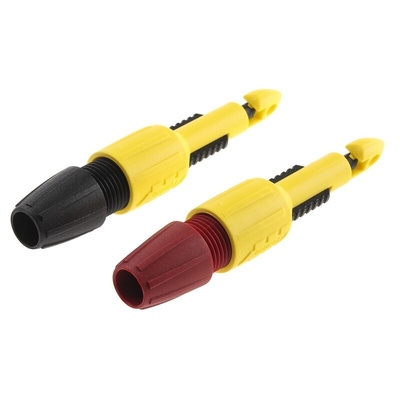

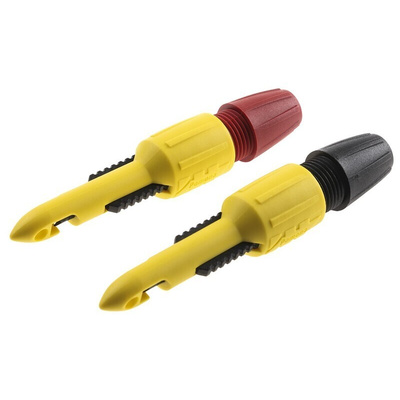

6405/POM, Pomona 1A Black/Red Grabber Clip, 70V dc Rating - 2mm Tip Size, 4mm Probe Socket Size, Зажим

Pomona insulation Piercing Clip

The Pomona insulation piercing clip has hardened stainless steel piercing tip. This assures a reliable connection to insulated wires from 22AWG to 14AWG without the need to cut or strip the insulation. The piercing needle operates quickly and efficiently with a spring-loaded clamp to hold the wire in place, leaving only a small, easily resealable hole. The Pomona insulation piercing clip banana plugs are a unique and versatile connection solution for test lead applications. The rotating banana jack will not twist test lead while the needle is screwed into the wire. It has a voltage rating of 70VDC and a current rating of 1A.

Features and Benefits

Extended length probe has heat resistant, Teflon sleeve
High visibility bright yellow body
Insulation material is nylon
Make contact with insulated wires without cutting or stripping insulation
Pierces insulation on wires from 22 to 14 AWG (0.030in through 0.180in diameter)
Probe socket size is 4mm
Red and black colour-coded cap for easy identification

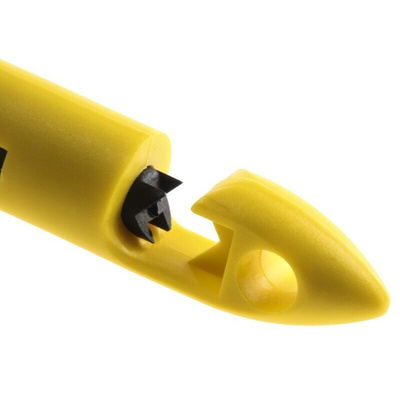

Spring loaded double V clamp holds wire centred for piercing needle
Tiny hole left in insulation can easily be sealed

Applications

Industries
Services
Trade

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

6405_6413_DataSheet
