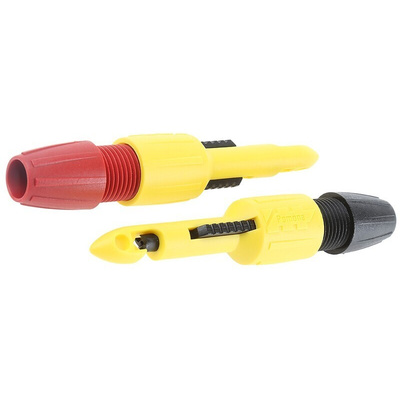

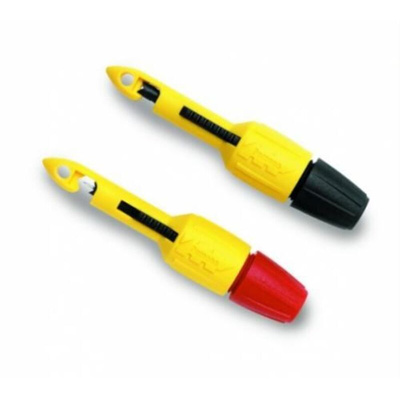

6413, Pomona Black/Red Insulation Piercing Clip Set with Hooked Piercing Blade, 1A, 70V dc, 2mm Socket, Зажим

Insulation Piercing Clips

From Pomona Electronics, this selection of Insulation Piercing Clip have a hardened stainless steel piercing tip, assuring a reliable connection to insulated wires from 22 to 14AWG without the need to cut or strip the insulation. With a spring loaded clamp to hold the wire in place, the piercing needle operates quickly and efficiently, leaving only a small hole that can be easily resealed. The Pomona insulation piercing clip banana plugs are a unique and versatile connection solution for test lead applications.

Features and Benefits:

• High visibility bright yellow body
• 6580 extended length probe has heat resistant PTFE sleeve
• 6405 and 6580 mates with standard 4mm banana plug test leads, with or without safety shroud (e.g. 5907A or B series patch cords)
• 6413 mates with standard 2mm pin tip test probe (e.g. 5519A)
• Red or black colour coded cap for easy identification
• Rotating banana jack will not twist test lead while the needle is screwed into wire
• Operating voltage: 33Vrms or 70V dc max.

Pomona Hook Clip, 102mm Length, Brass Jack - 6413

Want to take your wire testing to the next level? Use this pin-tip hook clip from Pomona in your test lead applications. It pierces the wire's jacket to get right to the conductive core without the need for cutting and stripping. Thanks to the spring-loaded double V clamp, this tool holds fast onto the cable to prevent movement. The tiny hole is a cinch to seal, so it's simple to repair afterwards. You can also rest assured that rotating the banana jack doesn't twist the test lead during operation, ensuring ease of use while working.

Features & Benefits

• Mates with standard-sized 2mm pin tips to make replacements a breeze
• Yellow body is highly visible for increased safety
• Colour-coded cap makes the clip easy to identify
• Rugged steel spring withstands heavy use to support long-lasting operation

Applications

• Electrical engineering
• Automotive industry
• Telecommunications sector

What sized wires can this clip pierce through?

This device quickly pierces through wires between 22 and 14AWG, making it a versatile choice to keep in your testing kit.

Can I use this device with 4mm banana plug test leads?

This tool is designed to work with 2mm pin tip test probes. You'll need a 4mm probe socket size (541-6292) if you use 4mm banana plug test leads.
