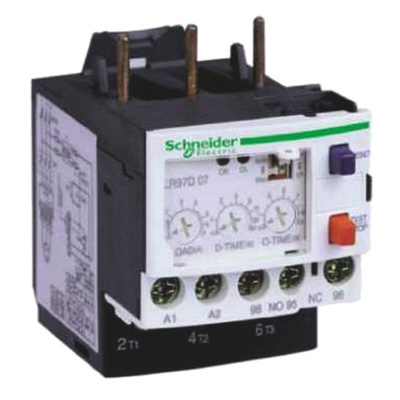

LR97D07F7, Schneider Electric LR97 D Overload Relay 1NO + 1NC, 1.2 → 7 A F.L.C, 7 A Contact Rating, 55 W, TeSys, Реле

LR97 D Electronic Overcurrent Relays

Suitable for machine protection requirements where machinery may be subject to difficult starting, jamming, high resistive torque/high inertia and/or mechanical failure
1 N/O and 1 N/C contact
LED status indication: Voltage, Starting, Steady State, Overload, Trip
Trip status monitored: Over-Current, Rotor Locked, Phase Failure (L1, L2, L3)
Manual or automatic reset
H 64.5mm x W 45mm x D 67.5mm

Note

Current range (A) refers to the relay setting range. To allow for tripping sensitivity, the useable current range will be less than the maximum value quoted. Please refer to the manufacturer’s data sheet for specific product information.
