118-00066 T120ROS-PA66HS-BK, HellermannTyton Cable Tie, 385mm x 7.6 mm, Black Polyamide 6.6 (PA66), Pk-100, Кабельные стяжки

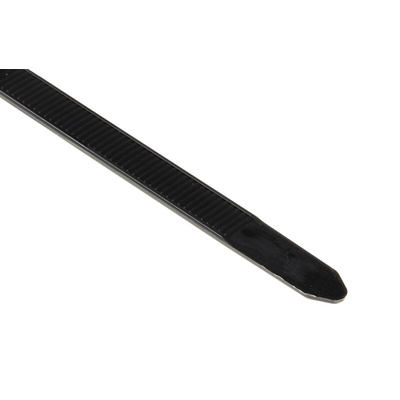

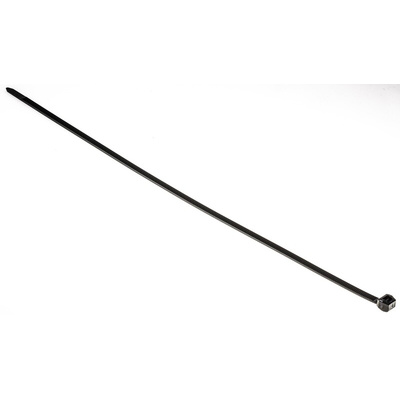

HellermannTyton Cable Tie

The HellermannTyton T120ROS series black cable tie is made of nylon 66 (PA66HS). It has a bundle diameter of 105mm, length of 385mm and width of 7.6mm. This cable tie offers the ideal combination of high specification materials and superior design to meet the needs for bundling and securing thin-wall and soft insulated cables. This cable tie is designed to meet specific applications where thin-walled or soft insulation wires or cables are used. Each pack contains 100 units.

Features and Benefits

Bundles and holds secure cable bundles as small as 1.6mmØ
Designed specifically to overcome problems where the compression of cores could lead to cross-talk
Easily application either manually with a processing tool
Low insertion force and high tensile strength
Network rail approved
Operating temperature ranging between -40°C and 105°C
Outside serrated with smooth surface to the bundle
Presents a smooth surface to the cable, thus preventing insulation damage by vibration or indentation
Small, rounded head design allows use in areas having restricted space or access
Takes up less space due to curved head
Tensile strength is 535N

Applications

Aerospace
Automotive cable harnesses
Mass transit
Medical apparatus

Certifications

EN 45545-2
HF certified
NF-F 61-349
UL 94 V2 approved
