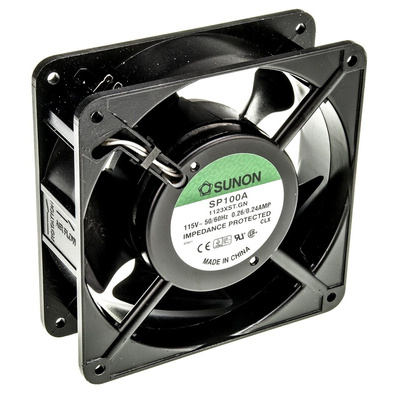

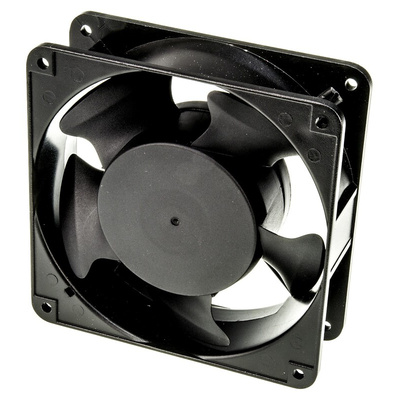

SP100A/1123XST.GN, Sunon SP Series Axial Fan, 115 V ac, AC Operation, 161.4m³/h, 20W, 240mA Max, 120 x 120 x 38mm, Вентилятор

Sunon SP Series Sleeve Bearing AC Axial Fans

From Sunon, the SP series of AC axial fans feature a durable construction and an environmentally friendly design.

Sunon AC sleeve bearing axial fans are a reliable and versatile solution to a variety of cooling requirements and feature a range of airflow options and speeds. Sunon AC fans are also long-life, making them a high value, low maintenance choice. Applications include automation control equipment, enclosures and converters.

Features and Benefits

• Aluminium alloy frame
• Low power consumption
• Long motor life
• Blow or extract mounting capabilities
• Impedance protected
• RoHS compliant

Applications

Applications
The SP Series of fans are suitable for a range of thermal management applications in both heating and cooling.

• Refrigeration
• HVAC
• Industrial equipment
• Medical equipment

FAQ

Q: What are the advantages of Sleeve Bearings fans over Ball Bearing fans?

A: While ball bearing fans can typically run for longer and in more harsh conditions than sleeve bearing, sleeve bearing have the advantage of having a simplified, often more cost effective design. Because of their simplified design, sleeve bearings are more impact resistance.

Q: What are the advantages of AC fans over DC fans?

A: AC fans are more suited for applications when a constant, even flow of air cooling is needed.

Q: Are these fans durable?

A: With aluminium housing material, these fans have a sturdy construction suitable for a long service life.

Approvals

UL, CSA, TUV, VDE

Supplied with
type":"Supplied with",

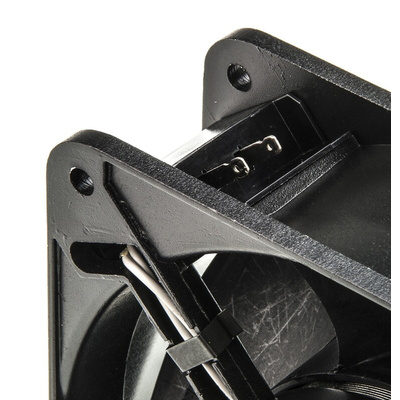

Faston terminal

Sunon AC Axial Fan & Blower Data Sheet
