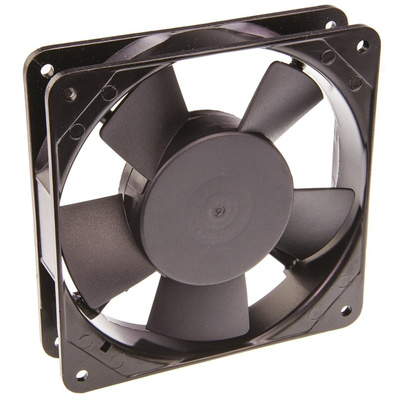

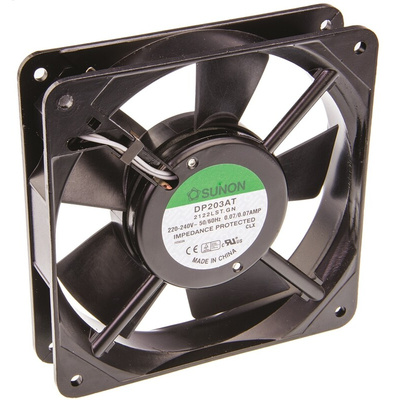

DP203AT/2122LST.GN, Sunon DP Series Axial Fan, 230 V ac, AC Operation, 78.2m³/h, 13W, 70mA Max, 120 x 120 x 25mm, Вентилятор

Sunon Sleeve Bearing Axial Fan

The Sunon sleeve bearing axial fan has 1800rpm motor speed. It has a supply voltage rating ranging from 220VAC to 240VAC and dimensions of 120mm x 120mm x 25mm. An extended ball bearing life ensures fault-free use for a significant period. This ensures ebm-papst AC fans provide a flexible and dependable cooling solution for applications that require an axial fan to be mounted in any axial position. This fan has a power consumption rating of 13W. These DP series AC Axial fans have a reliable shaded-pole motor construction and are specifically developed for higher operating voltages. Although it is suitable for industrial applications, it features eco-friendly technology that conserves energy due to its low power consumption. With a sturdy aluminium alloy frame and thermoplastic impellers, the DP series of AC axial fans are a reliable solution to thermal management applications.

Features and Benefits

Compact
Low power consumption
High-temperature resistance
Impedance protected
Service life of approximately 50000 hours
Blow or extract mounting capability
Counter-clockwise rotation

Applications

Air conditioners
Heaters
Medical equipment
Automation control equipment

Certifications

UL approved
CSA
VDE

Approvals

-

Sunon Axial AC Fan Data Sheet

Sunon AC Axial Fan & Blower Catalogue
