A2123-HSL.GN, Sunon A2123 Series Axial Fan, 230 V ac, AC Operation, 161.4m³/h, 22W, 120mA Max, 120 x 120 x 38mm, Вентилятор

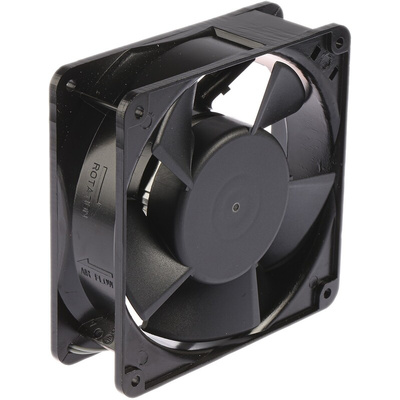

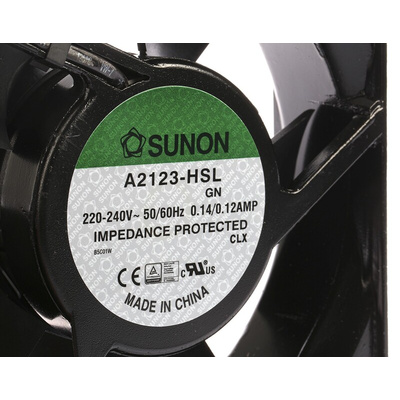

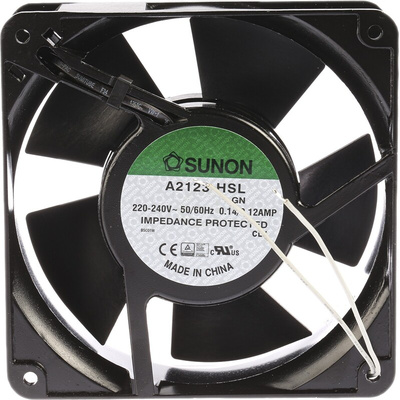

Sunon Sleeve Bearing Axial Fan

The Sunon sleeve bearing axial fan has 120mm x 120mm x 38mm in size. The supply voltage rating is 230VAC. This fan has 2750rpm motor speed. It uses Maglev-powered technology, which enables fault-free use for a significant period. This ensures DC fans provide a flexible and dependable cooling solution for applications that require a fan to be mounted in any axial position. This fan has a power consumption rating of 1.66W. Sunon DR Maglev power series DC fans utilise Maglev technology to produce a fan with superior performance, low noise and long life. Maglev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the Maglev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. Maglev also provides excellent high-temperature endurance that results in a long life. Additionally, Maglev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance.

Features and Benefits

Operating temperature ranges between -10°C and 70°C
Supplied with fasten terminal
Blow or extract mounting capability

Applications

Overhead projection equipment
Laptops and game consoles
Digital appliances
Heavy industry
Medical
Opto-electronics
Automotive
Network communication

Certifications

NSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Approvals

-

Datasheet
