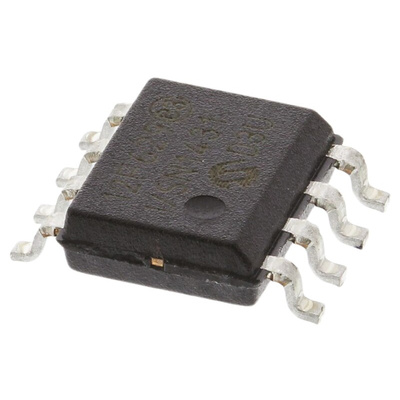

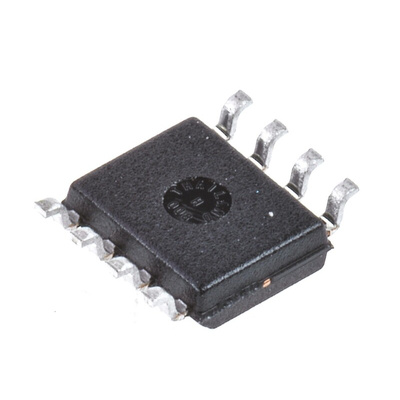

Microchip PIC12F629-I/SN, 8bit PIC Microcontroller, PIC12F, 20MHz, 1024 x 14 words, 128 B Flash, 8-Pin SOIC, Микроконтроллер

PIC12F629/675 8-Bit Flash Microcontrollers

Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12F629/675 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 1.75 Kbytes program memory with data memory consisting of 64 bytes RAM and 128 bytes EEPROM. On board is a RC oscillator with ±1% accuracy.

Features

35 Instructions
8 Level Hardware Stack
4 MHz Internal Oscillator
6 I/O Pins
1 Comparator
4 Channel 10-bit Analogue to Digital Converter (ADC) – PIC12F675 only
One 8-bit Timer
One 16-bit Timer
In Circuit Serial Programming (ICSP)

The Microchip PIC12F629 8-bit microcontroller has powerful PIC® MCU architecture into an 8-pin package and features 1 channel comparator and 128 bytes of EEPROM data memory. It operates on 2V to 5.5V voltage range. This microcontroller has 1024Bytes of program memory flash and 64Bytes of SRAM. It is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

Six I/O Pins with Individual Direction Control
High Current Sink/Source for Direct LED Drive
Programmable on-chip comparator voltage reference (CVREF) module
Programmable input multiplexing from device inputs
Comparator output is externally accessible
Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
Power-Saving Sleep mode
Low-Power Power-on Reset (POR)
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Brown-out Detect (BOD)
Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
Multiplexed MCLR/Input Pin
Interrupt-on-Pin Change
Individual Programmable Weak Pull-ups
Programmable Code Protection
High Endurance Flash/EEPROM Cell
Flash/Data EEPROM Retention greater than 40 years
Temperature range between -40°C to 85°C
SOIC package

Microchip PIC12F 8-bit PIC® Microcontrollers

Microchip’s PIC12F Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.

Datasheet
