RS PRO PET D Sub Backshell, 25 Way, Strain Relief

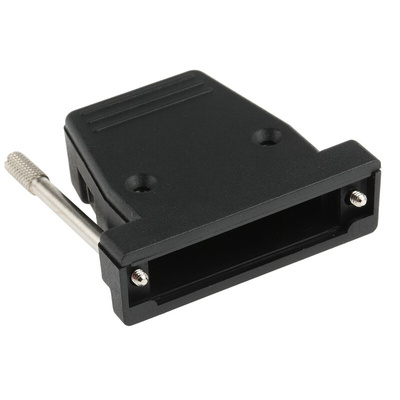

RS PRO PET D-Sub Connector Backshell, 25 Way, Strain Relief

This D-Sub connector backshell from the RS PRO range is most commonly used by electricians to form connections on modular boards. It's a useful solution for when the orientation of a signal needs to be changed to avoid interference.

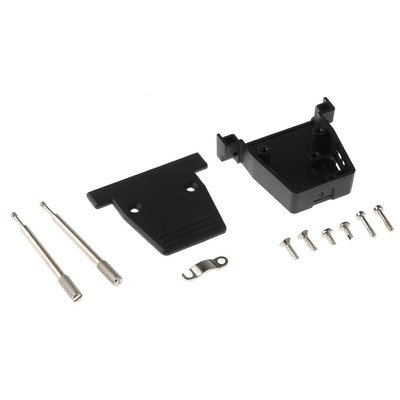

There's a steel internal cable clamp on the backshell, for top or side cable entry. Cables can be kept strain-free thanks to the cable retention feature and removable knockouts. The connector is supplied with two finger-operated and two standard jackscrews, so you can secure your connection to keep it stable.

The backshell has 25 B D-Sub shell-size contacts suited to metal shell D-connectors which conducts signal. This is suitably shielded from EMI (electromagnetic interference) thanks to its black UL94V-0 rated PET (polyethylene terephthalate) housing.

As part of our first-rate RS PRO range, this backshell has been extensively tested for quality.

Features and Benefits

• 25 contacts
• Straight body orientation
• B D-sub shell size
• Strain relief
• Black colour
• Housed in PET
• Only suitable for metal-shell D-connectors

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
