RS PRO ABS D Sub Backshell, 9 Way, Strain Relief

RS PRO ABS D-Sub Connector Backshell, 9 Way, Strain Relief

Ensure a stable connection while also easing the strain on your cables with this D-Sub connector backshell from RS PRO. A common sight in communication systems and computer networks, this type of connector lets you change the orientation of your connection without problems.

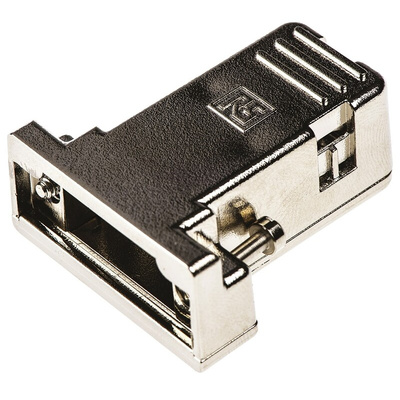

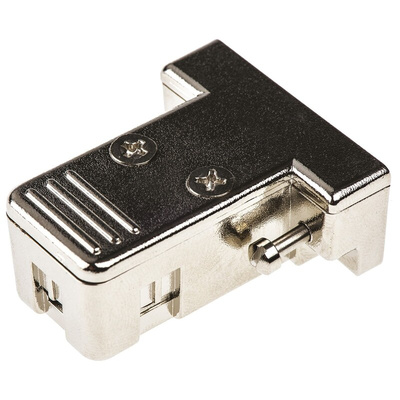

The handy, compact connector measures just 40.9 mm x 34.5 mm x 16.3 mm. Cables can be inserted from both the top and the side, while the screw-down cover protects the wires and keeps them safely in place. The lightweight acrylonitrile butadiene styrene (ABS) housing is nickel-plated, which provides optimal shielding from electromagnetic and radio frequency interference.

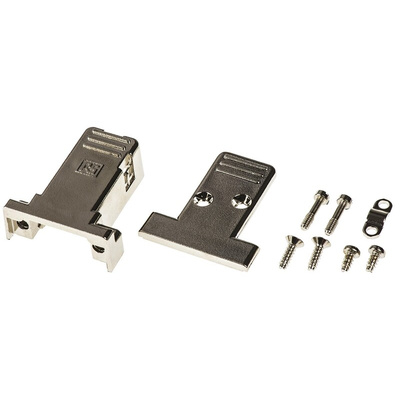

This RS PRO unit includes two jack screws, self-tapping cover screws and a cable clamp for screw-lock assembly. It has nine contacts with D-Sub shell size E.

This D-Sub connector backshell has been thoroughly tested for reliability and safety and is suitable for use with most standard and crimp D-connectors.

Features and Benefits

• ABS D-Sub connector backshell
• Measures 40.9 mm x 34.5 mm x 16.3 mm
• Includes two jack screws, self-tapping cover screws and a cable clamp for assembly
• Lightweight, nickel-plated ABS housing
• Nine contacts with D-Sub shell size E
• Strain relief
• Straight body
• Operating temperature range of -20°C to +75°C
• Complies with the safety standard for the flammability of plastic materials for parts in devices and appliances UL 94V-0
• Compliant with RoHS (Reduction of Hazardous Substances) safety standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
