RS PRO PET D Sub Backshell, 15 Way, Strain Relief

RS PRO PET D-Sub Connector Backshell, 15 Way, Strain Relief

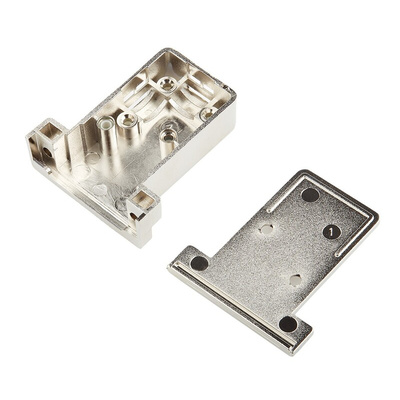

This RS PRO PET D-Sub connector backshell keeps your connection stable and reduces strain on your cables. It helps change the orientation of your connection reliably.

Measuring only 48 mm x 42.9 mm x 16.3 mm, the connector is small and practical. A straight screw-down cover means cables can be introduced through the top or side via removable knockouts. This keeps wires safely in place and protects them from wear and tear. The unit comes with two jack screws, self-tapping cover screws and a cable clamp for female screw-lock assembly. There are 15 contacts with A D-Sub shells sizes. Thanks to nickel-plated PET housing, the connector offers reliable EMI (electromagnetic interference) shielding.

This D-Sub connector backshell will work with most standard and crimp D-connectors. It’s compliant with RoHS (Reduction of Hazardous Substances) standards, being made with minimal unsafe substances. You'll find connectors such as these commonly used across computer networks and communications systems.

Features and Benefits

• Measures 48 mm x 42.9 mm x 16.3 mm
• Includes two jack screws, self-tapping cover screws and a cable clamp for assembly
• Nickel-plated PET housing
• 15 contacts with A D-Sub shell size
• Compliant with RoHS (Reduction of Hazardous Substances) safety standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
