RS PRO, Plug Cable Mount N Connector, 50Ω, Solder Termination, Straight Body, Разъем

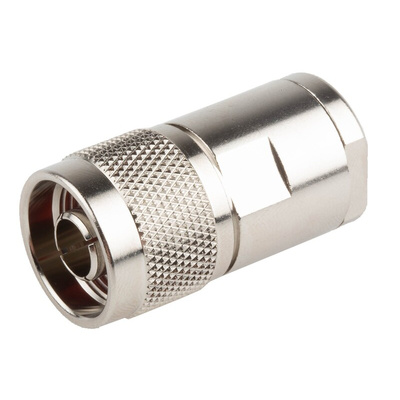

RS PRO Straight, N Connector, Plug

Looking for a coaxial cable plug to fit onto an RG213/U cable? This N-Series radio frequency (RF) connector from the RS PRO range fixes onto coaxial cables using a pressure cable clamp for a secure connection.
The plug has a nickel-plated body to stand up to corrosion in harsh environments. Its gold-plated brass centre contact is highly conductive and rust-resistant to ensure high-quality transmission. Thanks to its compact dimensions, it's a good choice for use in areas where space is restricted. Crimping the cable ensures a reliable connection that's protected against moisture and air.

This connector conforms to US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic control standards, so your equipment won't be damaged by electrostatic discharge (ESD). This kind of plug is suitable for applications such as video signalling and test equipment.

Features and Benefits

• Straight body orientation
• Nickel body plating
• N coaxial connector type
• Brass contact material
• Gold contact plating
• Male gender
• Crimp termination method

Dimensional Drawing

RS Pro Datasheet
