RS PRO 50Ω Straight Cable Mount UHF Connector, jack, Разъем

Bulkhead Socket (mtg hole 13mm dia)

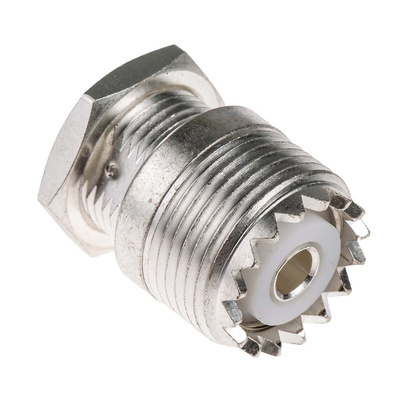

RS PRO 50Ω Straight Cable Mount UHF Connector, Jack

This female cable-mount UHF connector from the RS PRO range is a standard-sized radio-frequency (RF) connector that's used to join coaxial cables together.

UHF connectors are common in the radio industry as they're easy to assemble. Their solderable screw-on termination method requires nothing more than a cable stripping tool and a soldering iron.

A threaded coupling eliminates problems caused by poor mating, so you won't have to worry about them being removed accidentally or generating 'noise' when knocked. Their handy bulkhead shape means you can tighten them with the help of a spanner to increase the security of your connection.

This coaxial connector is suitable for use up to a 500 V peak and a frequency of 300 MHz. It comes with silver body plating and contact plating for high conductivity and low contact resistance.

Features and Benefits

• Straight body UHF connector
• Cable mounting
• Non-constant characteristic impedance of 50 Ω
• Operating frequency of 300 MHz
• Features a convenient screw-on coupling mechanism
• Normal polarity
• Beryllium copper contact material for optimal strength and performance

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Standard

A series of connectors to MIL specifications with high quality materials and PTFE insulation. Non-constant impedance design, suitable for use up to 500V peak and 200MHz, or up to 500MHz with diminished performance.

For 50Ω cable use crimp tool stock no. 456-431, and for 75Ω cable use crimp stock no. 456-447 or combined tool stock no. 453-870

Dimensional Drawing

RS Pro Datasheet
