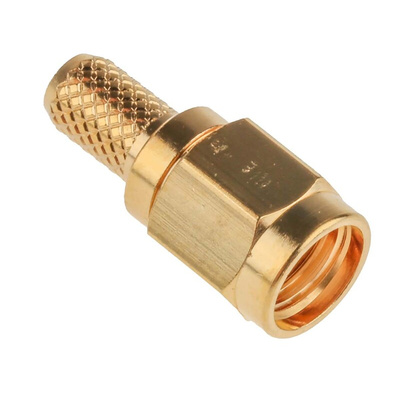

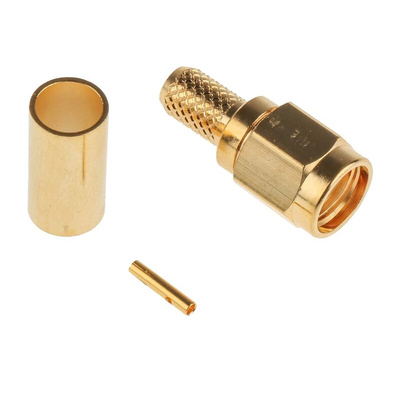

RS PRO, jack Cable Mount SMA Connector, Crimp Termination, Straight Body, Разъем

RS PRO Straight Cable Mount SMA Connector, Plug, RG58/U

This female SMA connector from the RS PRO range is a sub-miniature radio frequency (RF) coaxial connector. When paired with a female connector of the same type, this cable mount connector allows you to join coaxial cables together.

They're often used by homeowners, businesses and internet providers to convey data and are particularly useful in microwave systems, mobile phone antennas and Wi-Fi networks. This connector is especially suited for design and development work, made for use with RF coaxial cable type RG58/U. The coaxial design means the connector can transfer high-frequency electric signals with minimal signal loss.

This is a reverse polarity connector, so the centre pin has been swapped for a threaded receptacle. This design prevents users from attaching the wrong connectors which can also cause signal degradation. The connector's gold plating protects against vibration and helps to reduce electromagnetic interference.

Features and Benefits

• Straight body female SMA connector
• RG58/U cable type
• Subminiature in size
• Crimp termination method
• Cable mounting type
• Characteristic impedance of 50 Ω
• Operating frequency of 0 to 12.4 GHz or 0 to 18 GHz depending on class
• Voltage rating of 450 V
• Reverse polarity
• High-quality gold contact plating and body plating

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
