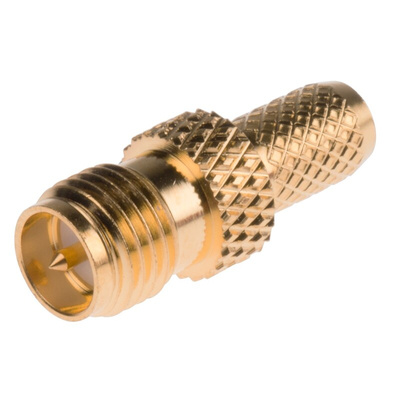

RS PRO, jack Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body, Разъем

Reverse straight jack

A raised pin in an SMA female connector indicates reverse polarity SMA female

Gold Plated - RS

SMA Connectors for semi-rigid and flexible cables.,

SMA Solder (Semi-rigid cable)

For use with semi-rigid coaxial cable
Designed to provide high frequency performance at high power ratings in small diameters
Stud contact types are provided in both captive and non-captive forms
Connectors available for the two most commonly used microwave cables, RG402/U and RG405/U

SMA Crimp (Flexible cable)

Used with a variety of flexible RF cables
Suitable for design and development work and where large quantity usage requires repeatability in performance
Available in non-captive contact form for optimum electrical performance
Assembly is acheived by soldering the centre contact and crimping braid and outer sleeve

SMA Clamp (Flexible cable)

Pressure sleeve clamp versions for use with flexible cables
Captive contacts ensure correct positioning and mating
Ideal for field service applications

Dimensional Drawing

RS Pro Datasheet
