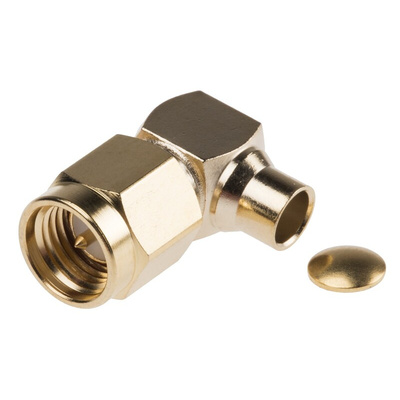

RS PRO, Plug Cable Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body, Разъем

RS PRO 50 Ω Right Angle Cable Mount, SMA Connector, Plug, RG402

This male right-angle connector from RS PRO is designed to tightly connect semi-rigid coaxial cables. It provides high-frequency performance at high power ratings, and its compact dimensions allow you to connect cables in areas where space is limited.
The right-angle design can help provide strain relief for cables, reducing the pressure points and minimising the risk of breakage or signal disruption. The gold-plated brass contacts are highly resistant to corrosion and heat damage, so they'll protect the integrity of the connection, even in harsh environments.
For a strong and long-lasting connection, simply solder the centre contact to terminate. The connector is suitable for design and development work, as well as heavy-duty applications where reliability over time is essential.

Features and Benefits

• Right angle body orientation
• Gold body plating
• No bulkhead
• RG402 cable type
• SMA (SubMiniature Version A) coaxial connector type
• Brass contact material
• Gold contact plating
• Male gender
• Impedance of 50 Ω
• Cable mounting type
• Operating frequency of 0 to 12.4 GHz, 0 to 18 GHz
• Normal polarity
• Subminiature size
• Solder termination method
• Voltage rating of 450 V
