RS PRO, jack Flange Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Flange Mount SMA Connector, Jack, RG402/U, RG405/U

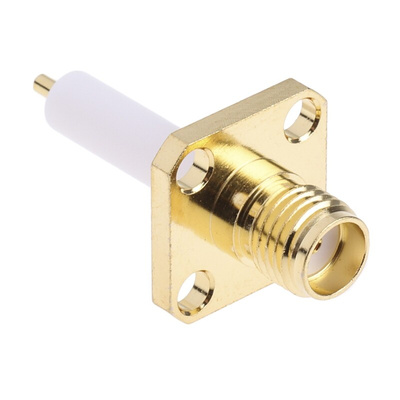

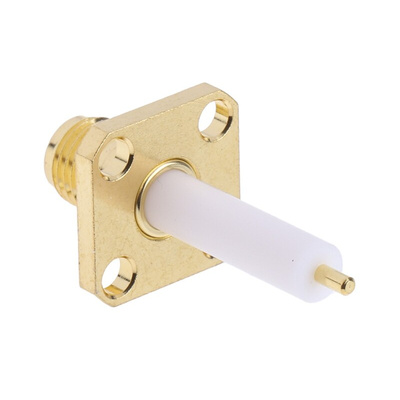

This female SMA receptacle from the RS PRO range is a sub-miniature radio frequency (RF) connector that can be used to join small coaxial cables together.

Coaxial cables (or coax cables) transmit RF signals from one point to another and are commonly found in homes and business to transmit signals between mobile telephone antennas and Wi-Fi networks. When used with a male connector, this flange mount SMA receptacle allows you to join two coax cables together quickly and easily.

The connector can be soldered onto flexible and semi-rigid cables and is available for the two most commonly used microwave cables – RG402/U and RG405/U. Soldered termination provides high-frequency performance at high power ratings in small diameters.

The connector also has a gold body and contact plating. This feature makes this high-quality product especially hardy, protecting it from wear associated with frequent insertions.

Features and Benefits

• Straight body female SMA connector
• Flange mounting
• Characteristic impedance of 50 Ω
• Normal polarity
• Stub contact with captive contact form
• Gold body and contact plating
• Subminiature size

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

-

Dimensional Drawing
