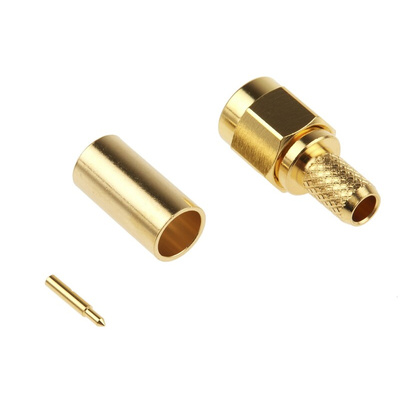

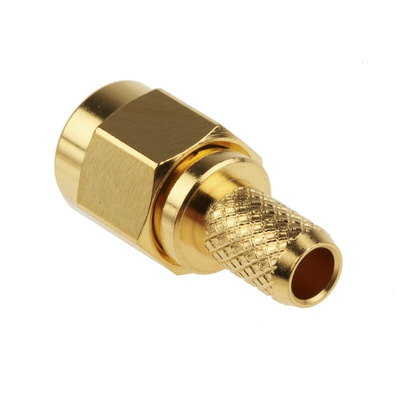

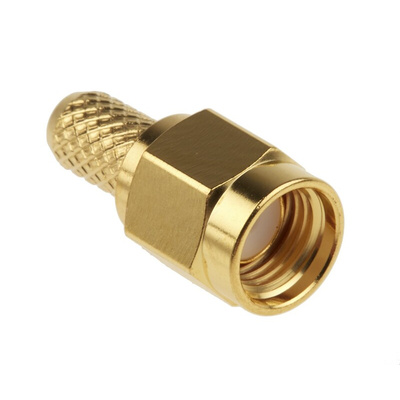

RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Cable Mount SMA Connector, Plug, RG58A

Use this handy SMA connector plug from RS PRO next time you need to transmit data in the home or workplace. It's designed for linking two coax (also called coaxial) cables together – they're the wires that send radio-frequency (RF) signals from one place to another. These type of SMA (subminiature version A) connectors are suitable for a wide range of RF applications, including WiFi equipment, mobile telephone antennas and microwave systems.

SMA connectors have an impedance of 50 Ω. This specific connector has an operating frequency of 12.4 GHz and can be crimped onto RG58A cables, such as those used for WLAN (Wireless Local Area Network) antennas.

The connector has a durable gold-plated brass body and centre contact for vibration resistance and a red silicone gasket. Its hexagonal design makes it easy to tighten and loosen. Like all RS PRO products, it's been rigorously tested for quality and safety.

Features and Benefits

• Straight body male SMA coaxial connector
• Sub-miniature size
• Cable mounting
• Characteristic impedance of 50 Ω
• Hexagonal shape for easy tightening and loosening
• Normal polarity
• Operating frequency up to 12.4 GHz
• Voltage rating of 500 V
• Operating temperature range of -65°C to +165°C
• Crimp termination method
• For use with RG58A cables
• Fitted with gold-plated brass body and centre contact
• RoHS compliant for hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
