RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Cable Mount SMA Connector, Plug, RG174U

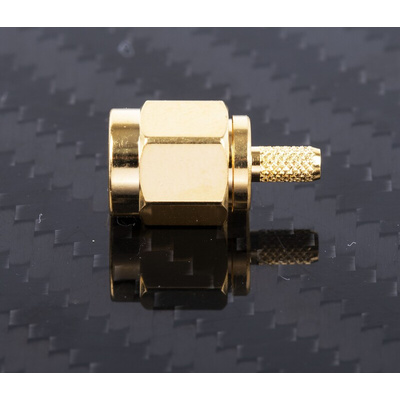

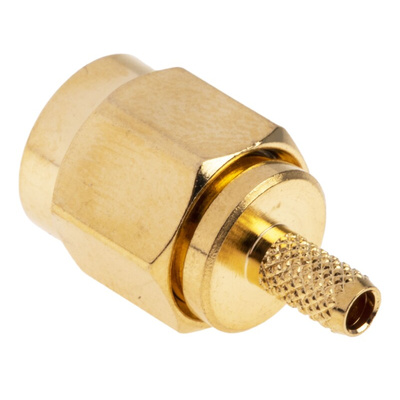

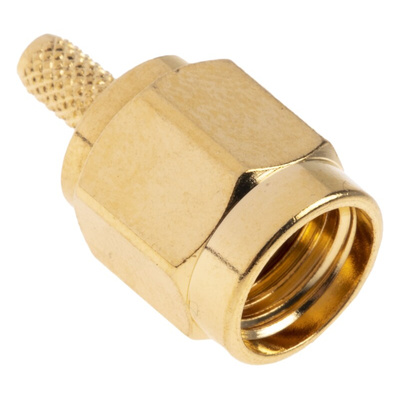

This male SMA connector from our tried-and-tested RS PRO range is a sub-miniature radio-frequency (RF) connector that can be used to join a variety of coaxial cables together.

Coaxial cables (or coax cables) transmit RF signals from one point to another. You'll find them used in microwave systems, mobile telephone antennas and Wi-Fi networks. When joined with a female connector, this cable mount SMA connector allows you to link two coax cables together, offering reliable data transmission in the home or workplace.

SMA connectors typically accept small cables, so the frequency limit is determined by the connector itself. This particular connector has an operating frequency of 6 GHz and can be crimped onto RG174U cables.

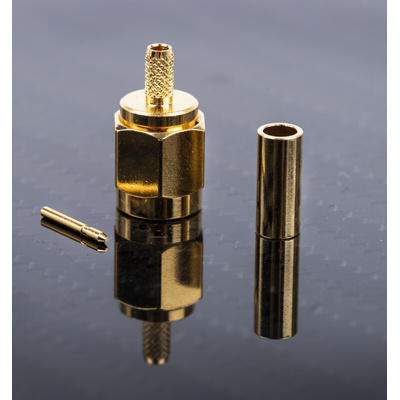

The connector has a screw-type coupling mechanism that provides reliable connectivity. Its gold-plated brass body and centre contact are resistant to vibration and can withstand wear from repeated insertions.

Features and Benefits

• Straight body SMA connector
• Cable mounting
• Characteristic impedance of 50 Ω
• Hexagonal shape for easy tightening and loosening
• Normal polarity
• Operating frequency up to 6 GHz
• Fitted with gold body and contact plating

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
